Design an Anatomical Plate Data Visualization Poster

Build a Victorian anatomical-plate bar chart in Lopsy with sepia skull engravings, muscle-shaped bars, a magnified inset, pattern gridlines and serif type.

  • Advanced
  • 150 min
  • 14 steps

Updated

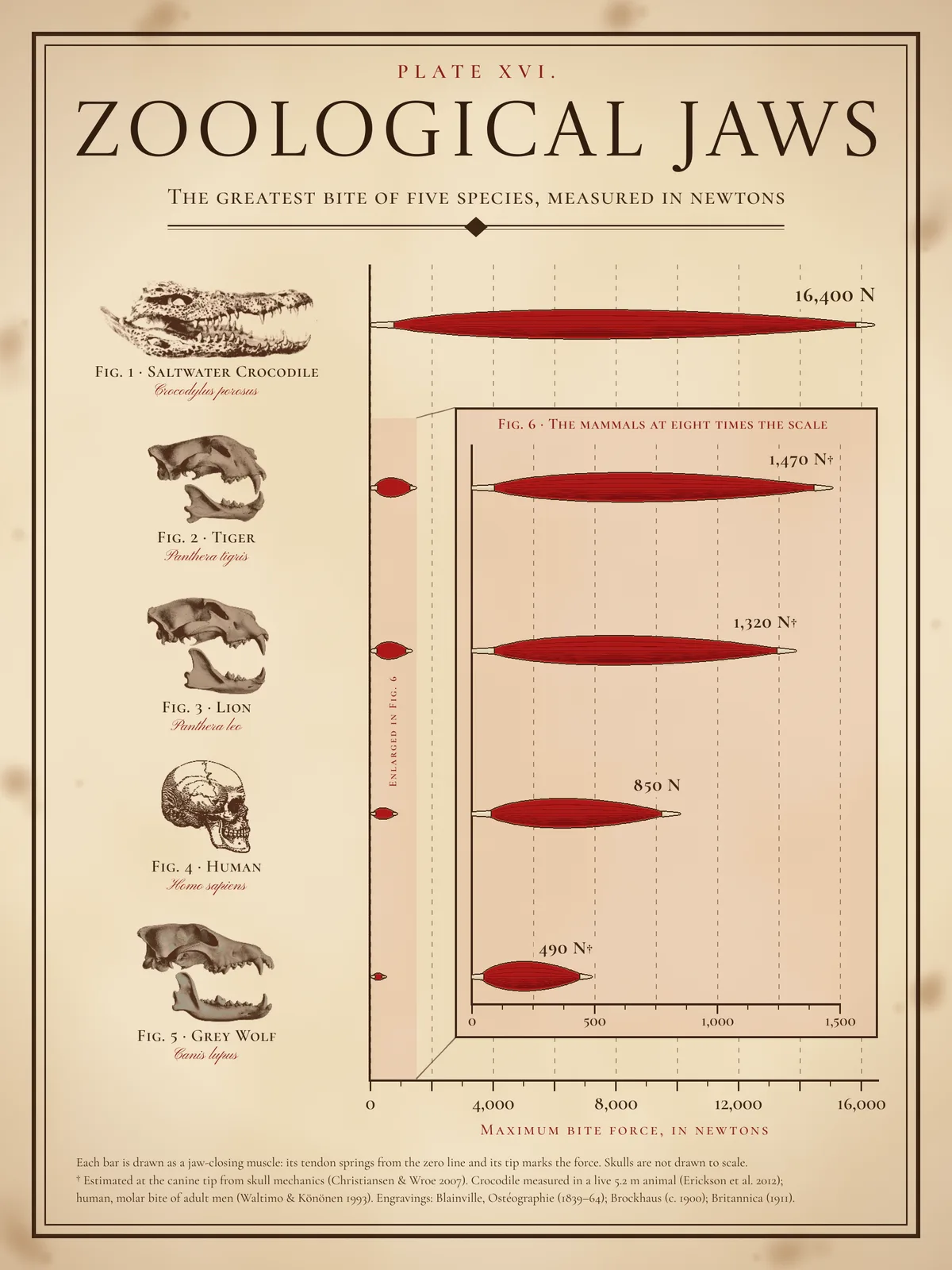

The finished Zoological Jaws poster, styled as a 19th-century anatomical plate on aged cream paper with a double-rule frame. Under "Plate XVI." and the title, the subtitle reads "The greatest bite of five species, measured in newtons". A left column holds sepia engravings of a crocodile, tiger, lion, human and grey wolf skull, each captioned "Fig." with its Latin name in script. To the right, each bite force is drawn as a red striated muscle with pale tendons. The crocodile's reaches 16,400 N across the whole chart. A framed, tinted inset labelled "Fig. 6 · The mammals at eight times the scale" redraws the tiger (1,470 N), lion (1,320 N), human (850 N) and wolf (490 N) against its own 0–1,500 axis. A pale strip on the main chart marks the enlarged region. Footnotes give methods and sources.

This poster is a bar chart dressed as a page from a Victorian anatomy atlas. The data is the maximum bite force of five animals. Each bar is drawn as a jaw-closing muscle: a pale tendon springs from the zero line, a red striated belly swells out, and the tip of the insertion tendon marks the value.

The crocodile's 16,400 N makes every mammal a sliver, so the four mammals are drawn again in a framed Fig. 6 at exactly eight times the scale. That's the classic "detail enlarged" device from scientific plates, and it keeps the chart honest.

The skulls are public-domain engravings from Wikimedia Commons:

  • Tiger, lion and wolf: Blainville's Ostéographie (1839–64).
  • Crocodile: a Brockhaus Konversations-Lexikon drawing.
  • Human: the 1911 Encyclopædia Britannica.

The values and their sources:

  • Saltwater crocodile: 16,400 N, measured in a live animal (Erickson et al. 2012).
  • Tiger: 1,470 N, estimated at the canine tip (Christiansen & Wroe 2007).
  • Lion: 1,320 N, estimated at the canine tip (same source).
  • Human: 850 N, measured at the molars of adult men (Waltimo & Könönen 1993).
  • Grey wolf: 490 N, estimated at the canine tip (Christiansen & Wroe 2007).

The palette:

  • Paper
  • Sepia ink
  • Plate red
  • Muscle carmine
  • Muscle hatching
  • Tendon
  1. Age the paper

    Create an 1800 × 2400 px document and Edit → Fill the Background with . Build the paper on three layers:

    1. Paper Grain: fill with mid-grey, then run Filter → Add Noise (40, Mono, Gaussian) and Gaussian Blur 2. Set it to Overlay at 35%. The grain has no direction, so it reads as rag paper, not wood.
    2. Mottle: run Filter → Clouds (scale 6) and set it to Soft Light at 14%.
    3. Edge Toning: draw a radial Gradient from transparent brown at the centre to at the corners. Set it to Multiply at 32%.

    For foxing, use a soft Brush (Hardness 0, Opacity 14) at a few sizes. Dab a few irregular clusters of rust in the margins, away from anything you'll print on.

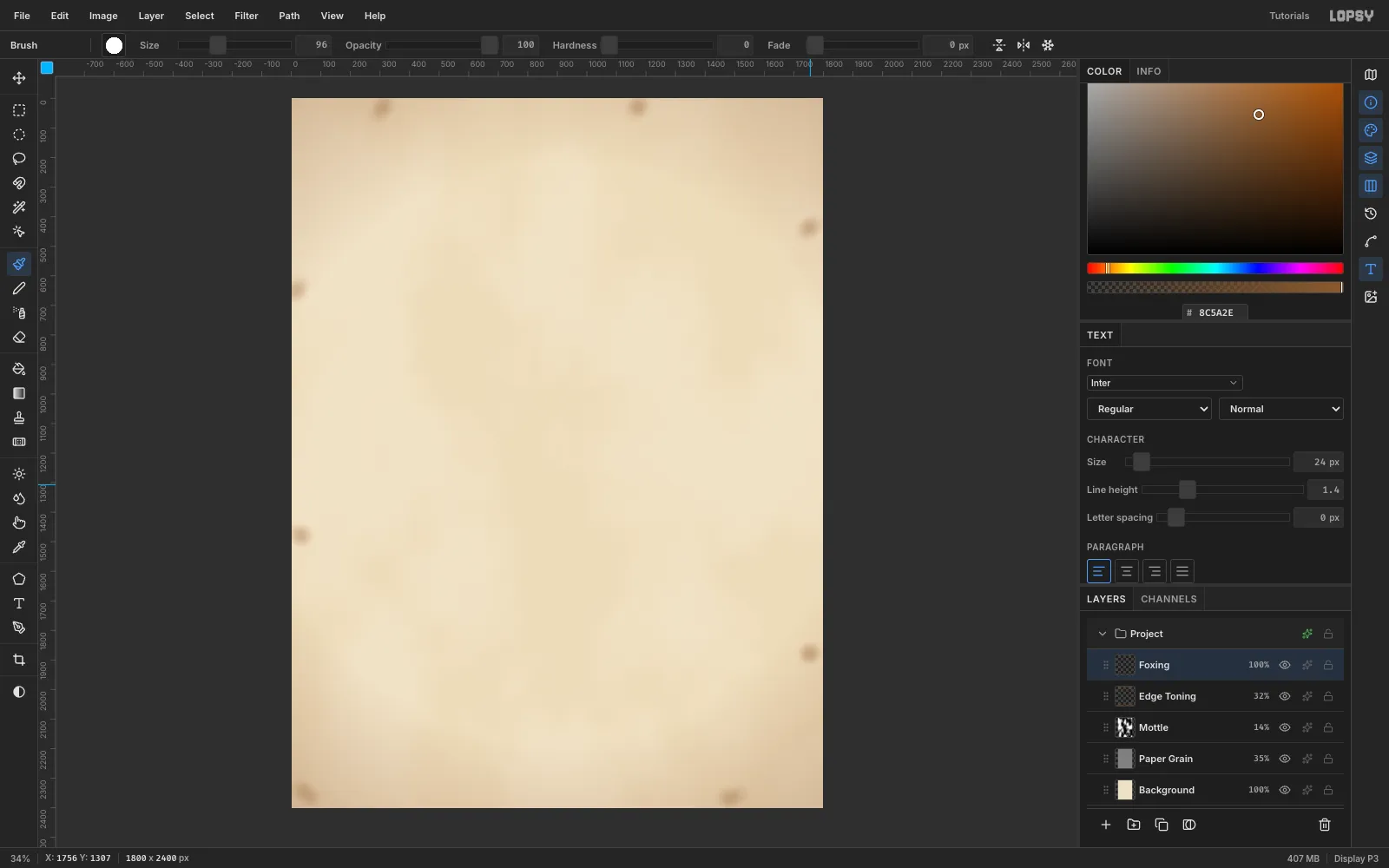

    A blank 1800 by 2400 document filled with warm cream paper, faint mottling, darker toned edges and soft brown foxing spots in the margins
  2. Rule the frame and set the title

    The chart is drawn to scale, so its guides need to land on exact pixels. Zoom in on each ruler and watch the readout beside the pointer as you click:

    • Top ruler: 132 (the left edge of the skull column), 700 (the zero line) and 1660 (the right edge of the chart).
    • Left ruler: 500 (the top of the chart) and 2040 (the axis).

    On a Plate Frame layer, marquee-fill a 7 px sepia ring 60 px in from the edge, and a 2 px ring 84 px in. The ring recipe is: marquee, Fill, Select → Shrink, then Delete.

    Set the type with the Text tool, centring each line with Align center horizontally. Click the Plate Frame layer before you set up each line:

    • Title: "ZOOLOGICAL JAWS" in Castoro Titling, 146 px, letter spacing 8.
    • Plate number: "PLATE XVI." in Cormorant SC SemiBold, 38 px, letter spacing 12, in plate red.
    • Subtitle: Cormorant SC Medium, 44 px, letter spacing 2.

    Back on Plate Frame, draw a thick and a thin rule under the subtitle, the same width as the subtitle, with the Pencil: click at one end and Cmd+Shift-click the other so the rule stays level. Lasso a small diamond at the centre.

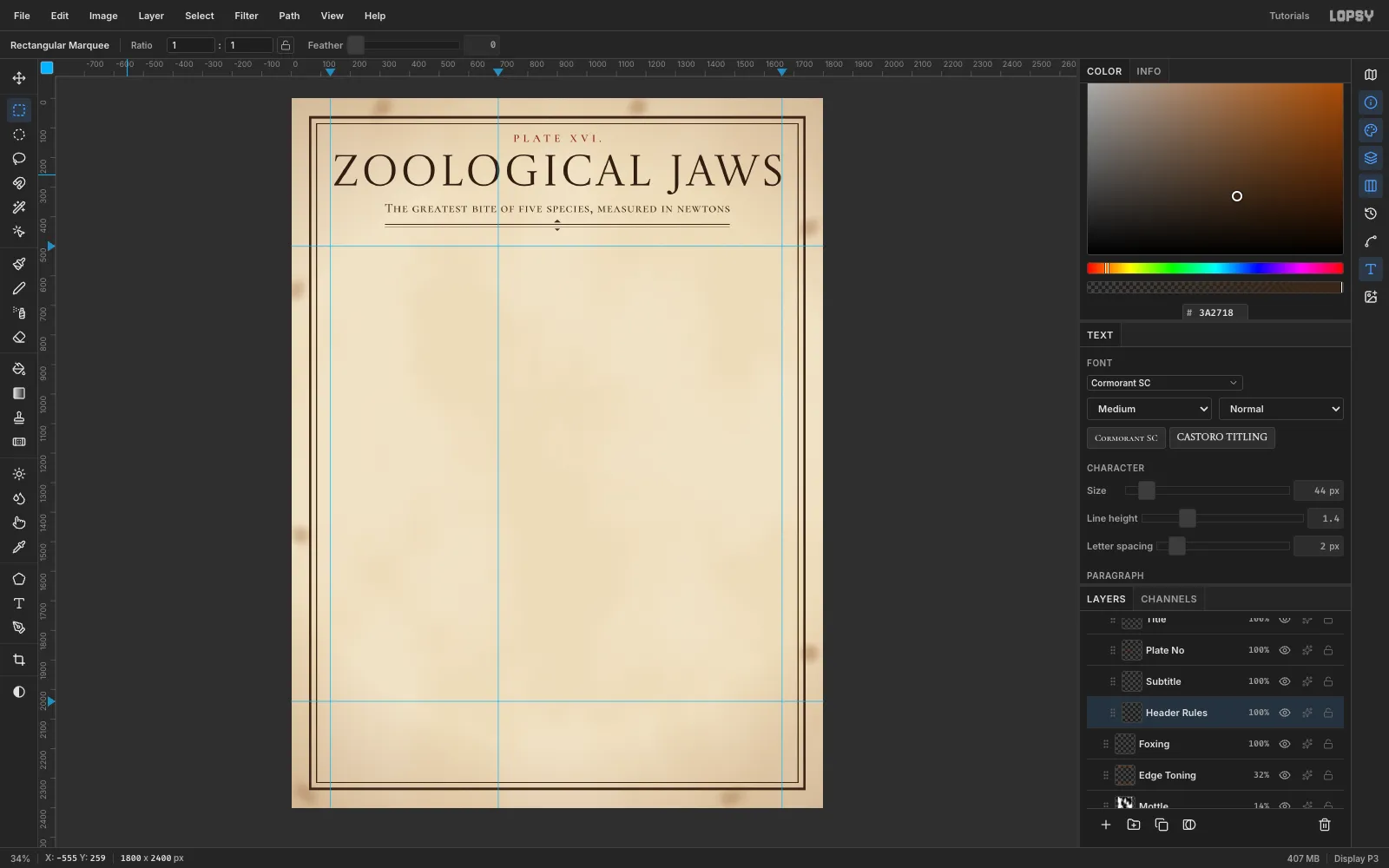

    The paper with a heavy outer rule and a thin inner rule, blue guides marking the skull column, the zero line and the right edge of the chart, and the Plate XVI title block above a double rule with a diamond
  3. Draw dashed gridlines with a pattern

    The main scale is 0.058 px per newton, so 2,000 N is exactly 116 px. Make a dash tile to match:

    1. On a scratch layer at the top-left corner of the canvas, fill a 2 × 9 px sepia dash starting 4 px in from the left edge.
    2. Select a 116 × 20 box starting at the canvas corner and run Edit → Define Pattern. Then delete the scratch layer.
    3. On a Gridlines layer, select the chart area, from the zero line to just past the right-edge guide and from the top guide down to the axis guide. Run Edit → Fill with Pattern…, pick the dash, and set the layer to 45%.

    Tiny, exact boxes like these are what the marquee's click-for-corners dialog is for: From 4, 0 To 6, 9 for the dash, From 0, 0 To 116, 20 for the tile, and From 700, 500 To 1664, 2040 for the chart area.

    A pattern fill tiles from the document's top-left corner. Because 700 ÷ 116 leaves 4, the dash at 4 px in the tile lands exactly on the zero line and then every 116 px after it.

    Draw the zero line down the 700 guide and the x-axis along the 2040 guide with the Pencil at Size 4 in sepia: click at one end and Cmd+Shift-click the other. Add short Pencil ticks on the axis every 58 px, with a long tick every 116. Label 0, 4,000, 8,000, 12,000 and 16,000 in Cormorant SC SemiBold, 34 px, letter spacing 0.

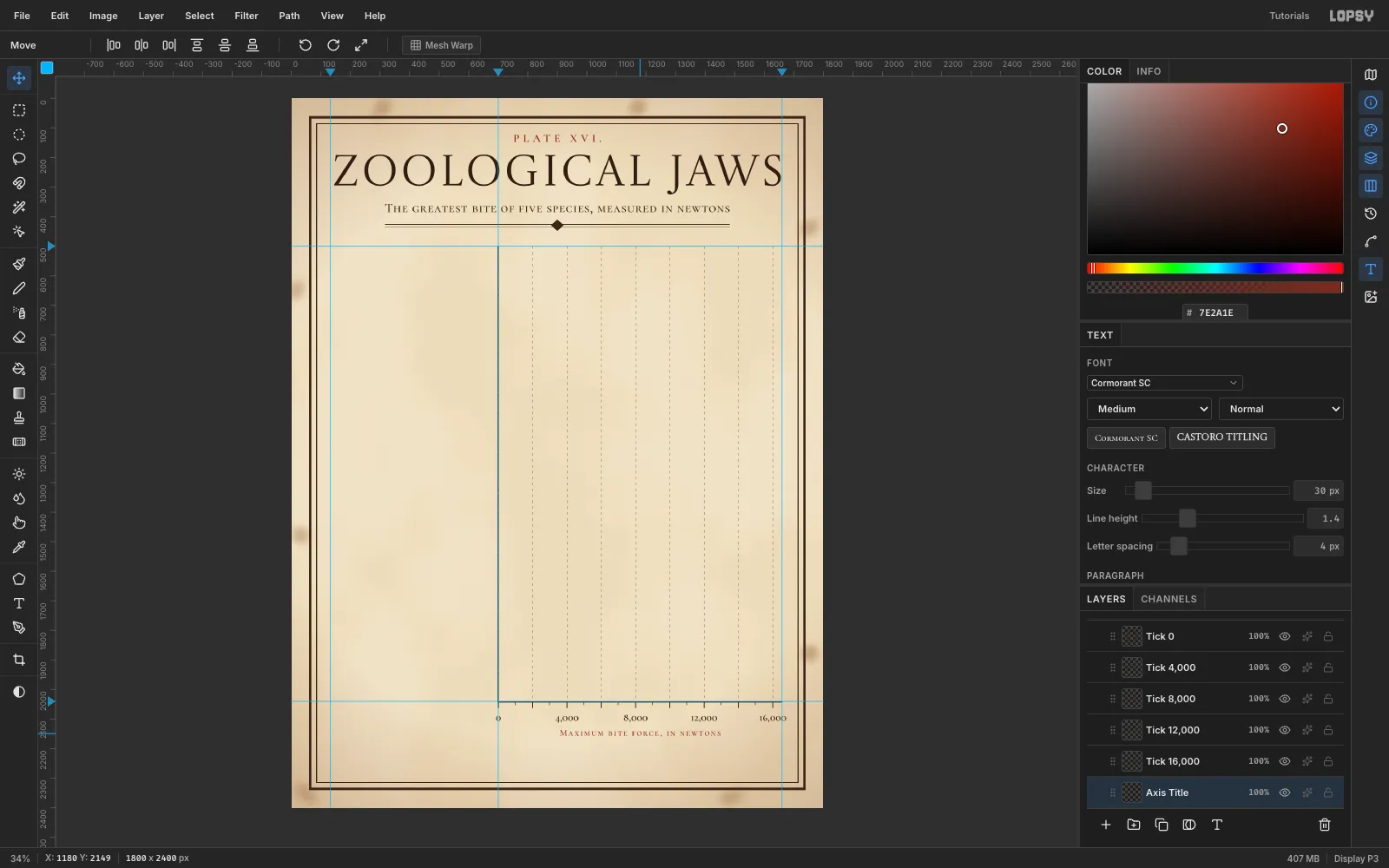

    The empty chart area with fine dashed vertical gridlines every 2,000 N, a solid zero line, a ticked x-axis labelled 0 to 16,000 and the axis title in red
  4. Paste a public-domain engraving

    Make a Skulls group. Copy the human skull engraving from your browser and press Cmd+V. Lopsy pastes it at the top-left of the canvas with transform handles, at full size if it fits (a larger image is scaled down to fit the canvas). Press Cmd+D to drop the transform and rename the layer Human Skull.

    Clean the engraving now, while it's full size and the lettering is easy to hit.

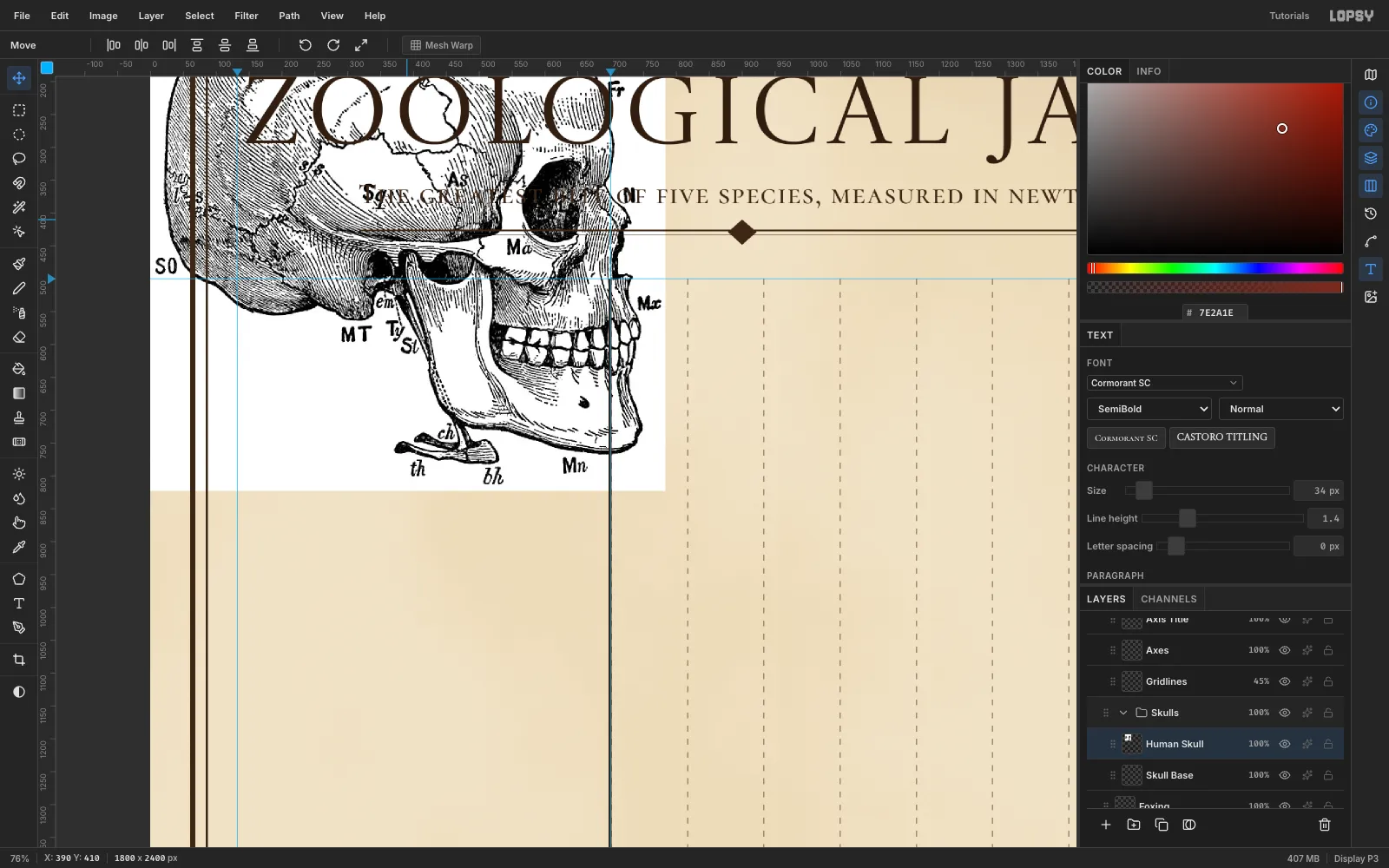

    The 1911 Britannica skull engraving pasted at full size in the top-left corner of the canvas, with its bone labels Pa, Fr, Sq, Mx and Mn and the hyoid bone still visible
  5. Retouch the lettering away

    This old engraving has bone abbreviations printed all over it:

    • Labels on white paper (Pa, Fr, SO, MT, Mn) and the hyoid bone under the jaw: marquee each one and Edit → Fill it white.
    • Labels on the hatching (Sq, As, Ma, em): use the Clone Stamp at about 36 px. Alt-click clean hatching just beside the letters, then paint over them. The stamp keeps the same offset for the whole stroke, so the hatch lines carry straight through.

    Finish with Filter → Desaturate so every engraving starts neutral.

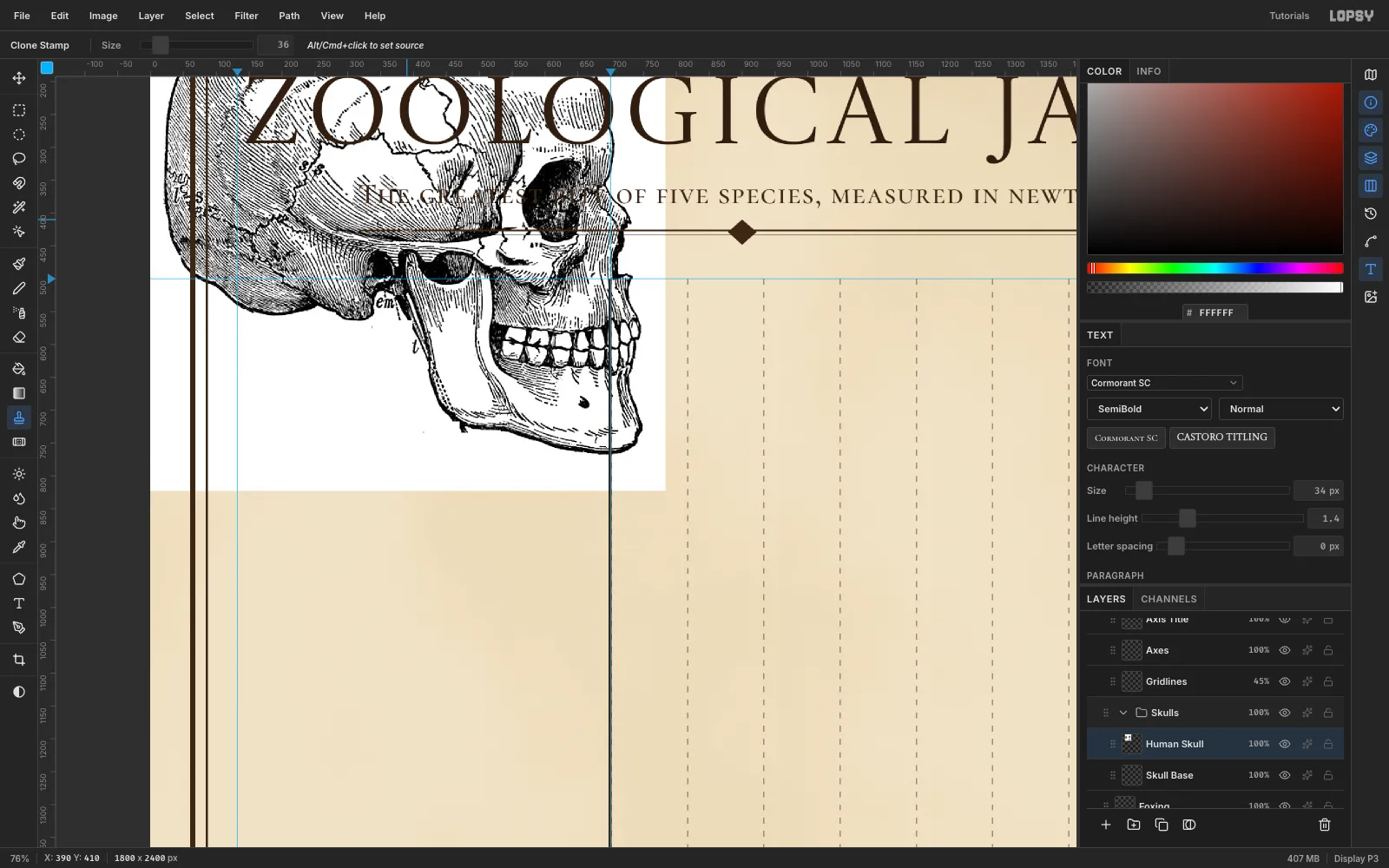

    The human skull engraving with every label removed; the Clone Stamp has replaced the letters inside the hatching with matching hatch lines
  6. Scale the skulls into their rows

    Paste the tiger, lion, wolf and crocodile the same way, desaturating each one. The crocodile drawing is pale, so give it Brightness/Contrast (−12, +45).

    Draw a marquee around each skull, switch to the Move tool and Cmd-drag the bottom-right handle to scale it uniformly:

    • Mammal skulls: 190 px tall.
    • Crocodile: 420 px wide.

    Then drag each skull into the skull column, centred left of the zero line, one per row, and press Cmd+D to commit. The rows are 308 px apart, starting at the top guide, so it helps to click the left ruler at 808, 1116, 1424 and 1732 for row guides.

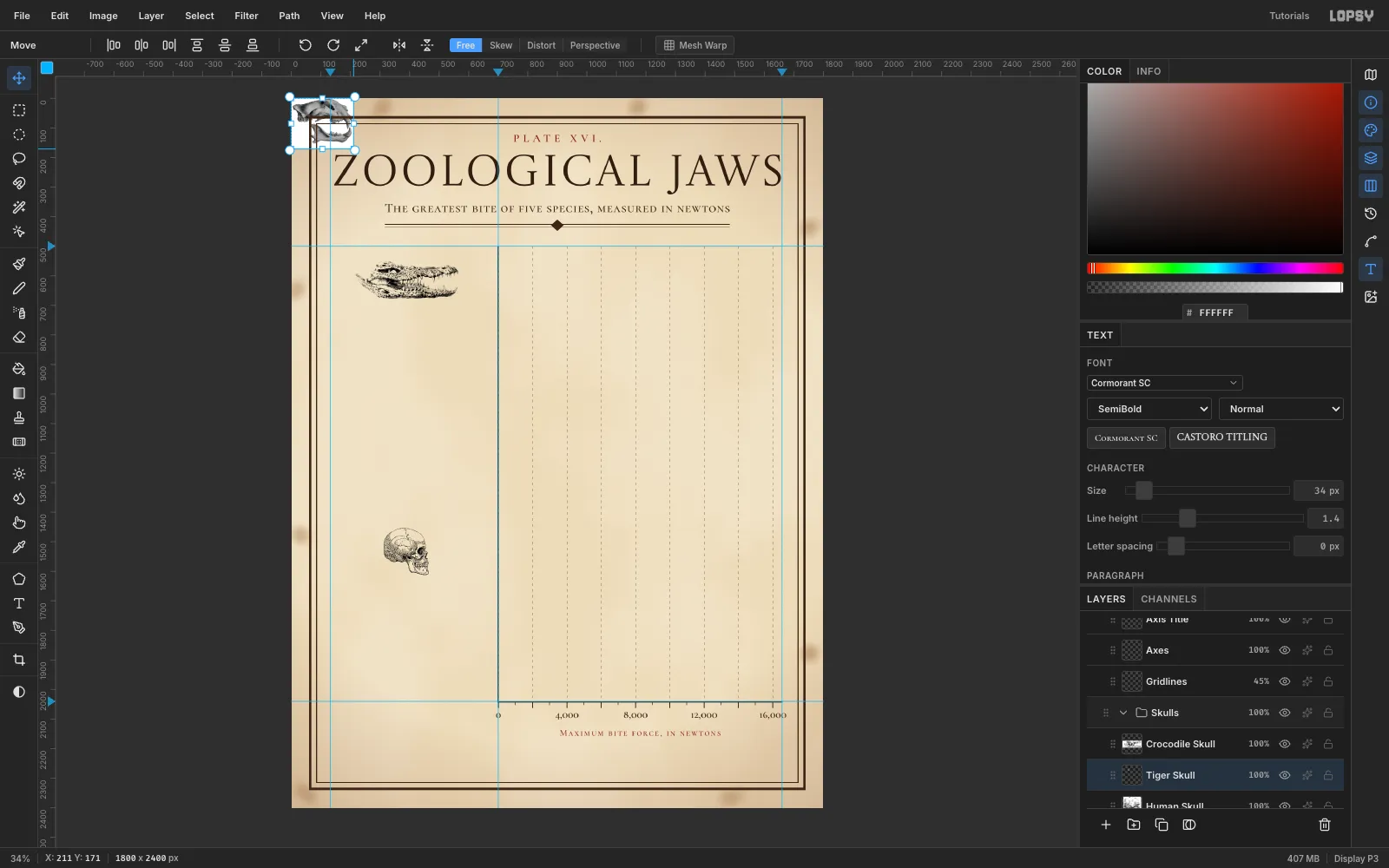

    The tiger skull pasted at the canvas corner with a transform box, being scaled down by dragging its bottom-right handle
  7. Multiply the skulls onto the paper

    Set every skull layer to Multiply in the effects drawer. White multiplies to nothing, so the paper shows through, and the grey engravings sit on it like printed ink.

    The human engraving has much thinner lines than the lithographs. To thicken them, run Layer → Duplicate Layer. The copy lands exactly on top of the original, so with the Move tool press → once to nudge it 1 px to the right. Keep it on Multiply too.

    The skull column zoomed in, with the five grey engravings sitting directly on the cream paper and their white backgrounds gone
  8. Tone the set to one sepia

    Two layers make the mixed engravings look like one printing:

    1. Ink Lift: fill a rectangle over the skull column with and set it to Lighten. Any ink darker than that brown is lifted to it. The paper is lighter, so it doesn't change.
    2. Sepia Wash: for each skull, marquee its box, then use the Magic Wand with Alt-click on the white background to subtract it, leaving only the ink. Fill that selection with on the wash layer. Set the layer to Color at 55%. Then wand the pure whites with Contiguous off and Delete them from the wash, so bare bone stays paper-coloured.

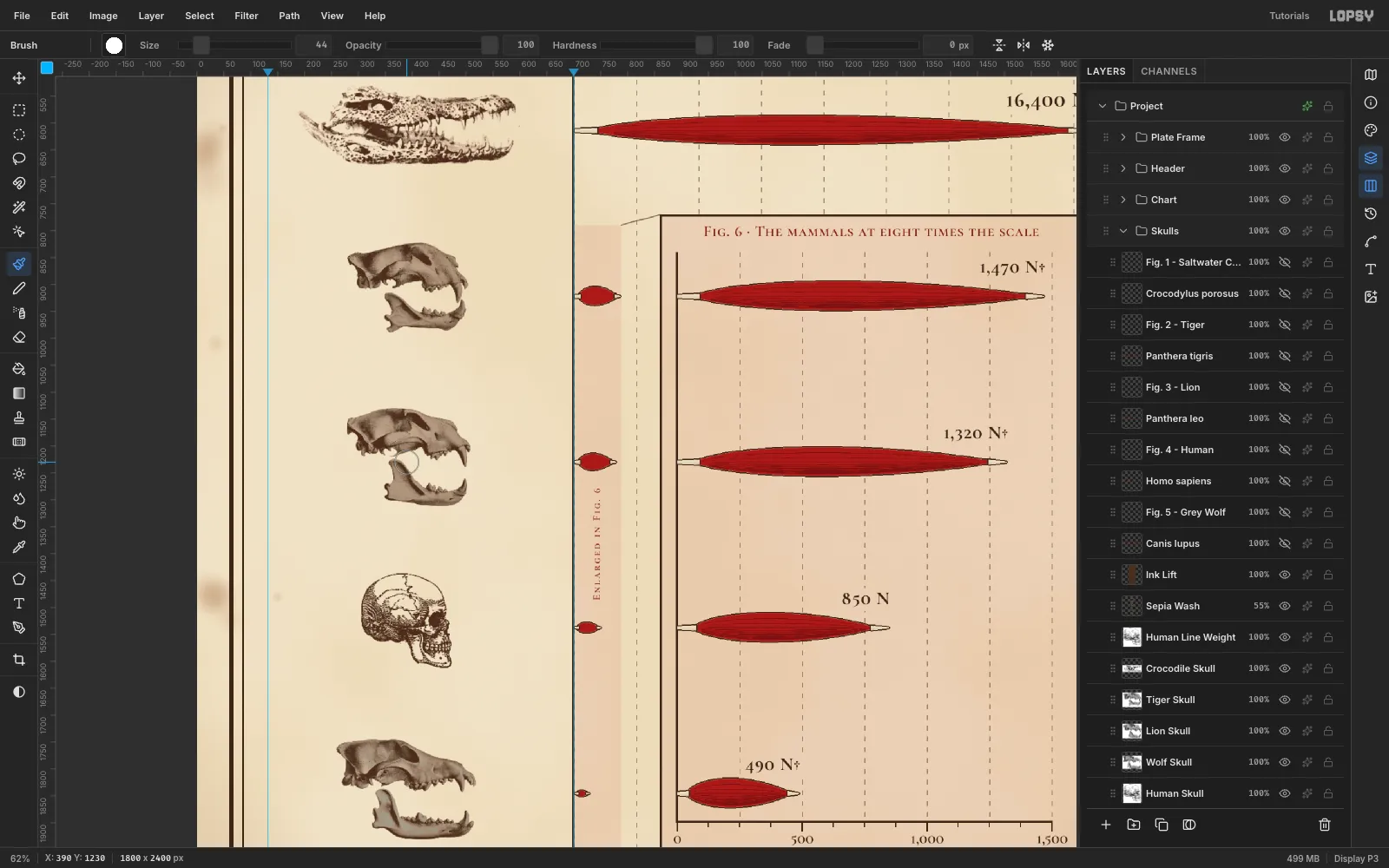

    The same skull column now in a warm brown ink, with the tiger, lion and human reading as one family of sepia engravings
  9. Caption each figure

    Under each skull, add two centred lines. Click a layer that isn't text before you set up each one:

    • "Fig. 2 · Tiger": Cormorant SC SemiBold, 32 px, letter spacing 1, sepia.
    • Panthera tigris: Pinyon Script, 30 px, letter spacing 0, plate red. A copperplate script plays the italic, the way an engraver would have lettered the Latin name.

    Place every caption about 16 px below the lowest ink of its skull, counting faint tooth tips. That keeps each caption clearly with its own figure, and at least 45 px from the skull below.

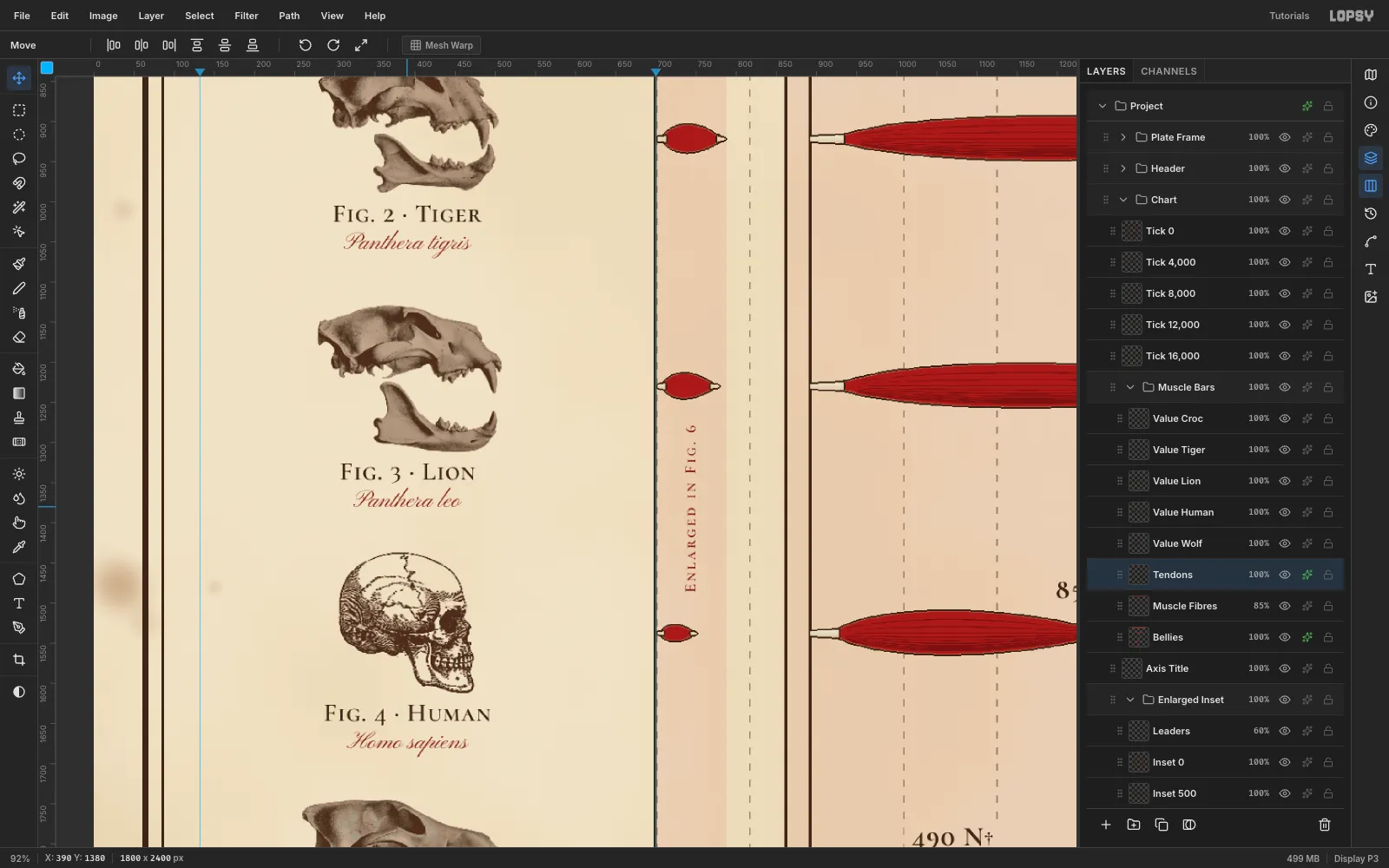

    Close-up of the tiger, lion and human skulls, each with a Fig. caption in small caps and a Latin name in red script beneath
  10. Frame the enlarged inset

    This is the honest way to show the small bars. In an Enlarged Inset group:

    1. Magnified Tint: fill two areas with carmine and set the layer to 6%. The first is a strip over the main chart's 0–1,500 N range: 87 px wide from the zero line, running from the top guide down to the axis. The second is the inset box, which fills most of the chart's right side: from about 160 px right of the zero line to the right-edge guide, and from about 270 px below the top guide to just above the axis (From 860, 770 To 1660, 1962 in the marquee dialog). The shared tint links the two.
    2. Knock out the main grid: on the Gridlines layer, marquee the inset box and Delete, so the two scales never mix.
    3. Inset grid: the inset scale is 8 × 0.058 = 0.464 px/N, so 250 N is 116 px again. Put the inset's zero line 32 px inside the box. Then define a second 116 px dash tile with its dash 80 px in: 892 ÷ 116 leaves 80, so the dashes land on that zero line and every 116 px after it. Pattern-fill it inside the box.
    4. Inset frame and axis: add the frame, its own axis and ticks, and labels 0, 500, 1,000 and 1,500 in Cormorant SC SemiBold, 28 px, letter spacing 0.
    5. Leaders: on a layer at 60%, draw two thin lines with a small, hard Brush from the strip's corners to the inset's corners: click one corner and Shift-click the other.

    Title the inset "Fig. 6 · The mammals at eight times the scale" in Cormorant SC SemiBold, 29 px, letter spacing 1, centred on the plot area.

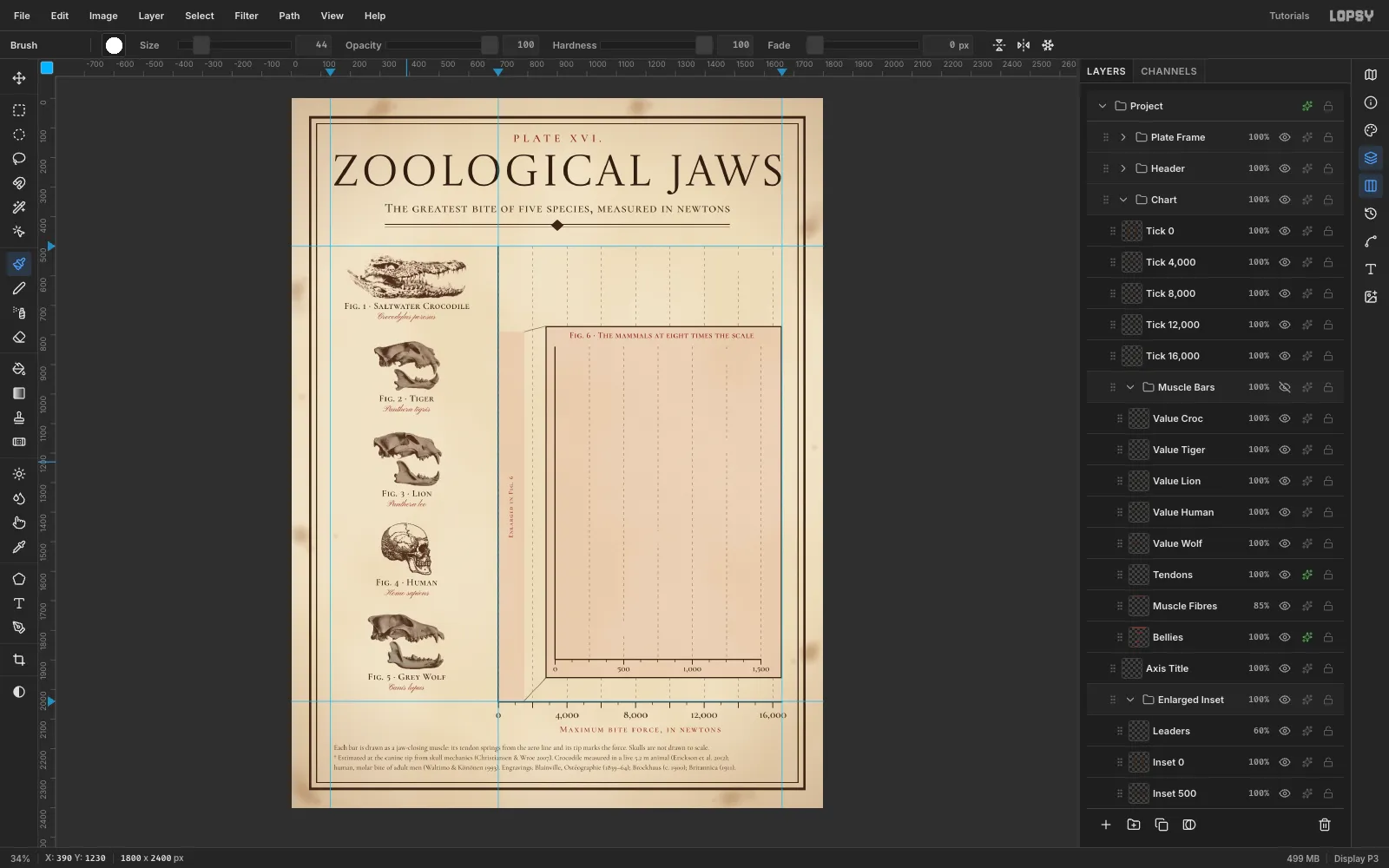

    The chart with a pale red strip over the first 1,500 newtons of the main axis, joined by two thin leader lines to a larger tinted inset frame with its own dashed grid and 0 to 1,500 axis
  11. Rotate a label into the strip

    Click Magnified Tint, then type "Enlarged in Fig. 6" in Cormorant SC, 20 px, in plate red, and click Rasterize Layer. Rasterizing first bakes the rotation into pixels, so a later re-render of the text can't undo it. Marquee it and switch to Move. Hold Cmd and drag the rotate handle, just outside the top-right corner, to snap to −90°. Press Cmd+D.

    Centre it in the pale strip, in the gap between the lion and human bars.

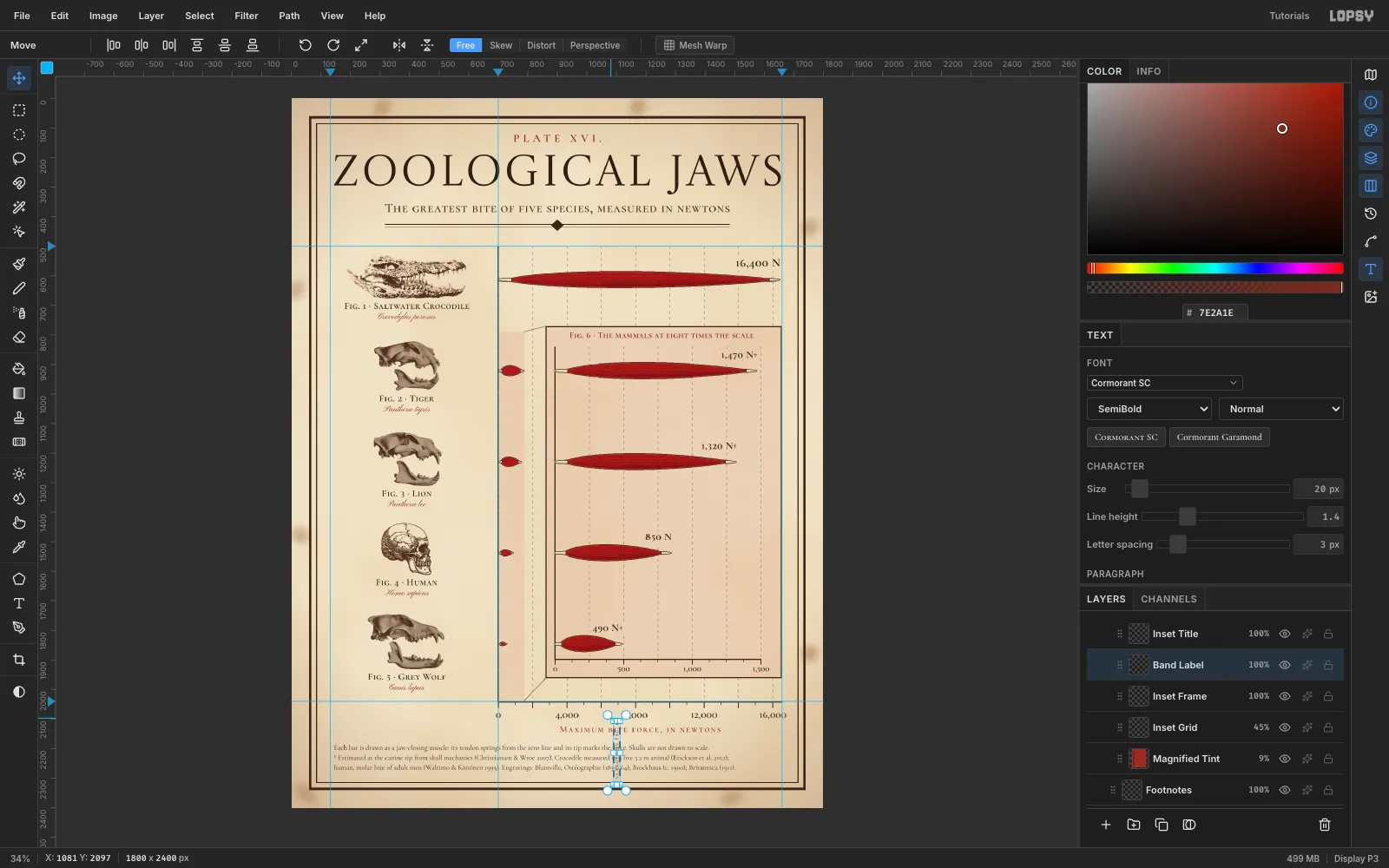

    A small red "Enlarged in Fig. 6" label, rasterized and rotated 90 degrees counter-clockwise with the rotate handle, still showing its transform box
  12. Draw the muscle bars

    Plan each muscle as a polygon, and let the length carry the data:

    • Origin tendon: a strap from the zero line, about 8% of the bar's length (capped at 38 px).
    • Belly: an asymmetric spindle, 56 px deep. On very short bars the depth shrinks with the length.
    • Insertion tendon: tapers to a point exactly at the value.

    For the crocodile, 16,400 × 0.058 = 951 px, so its tip lands 951 px right of the zero line, just short of the right-edge guide. The inset muscles use 0.464 px/N from the inset's own zero line.

    In a Muscle Bars group:

    1. Bellies: lasso each belly and fill it flat .
    2. Muscle Fibres: lasso thin tapered strands in that follow the spindle. Pack them tighter toward the bottom, so they shade like an engraver's hatching. Set the layer to 85%.
    3. Tendons: lasso each tendon and fill it with a → gradient.

    Run Gaussian Blur 2 on Bellies and Tendons to soften the lasso steps. Then give both a 2 px outside Stroke in , like an engraved keyline.

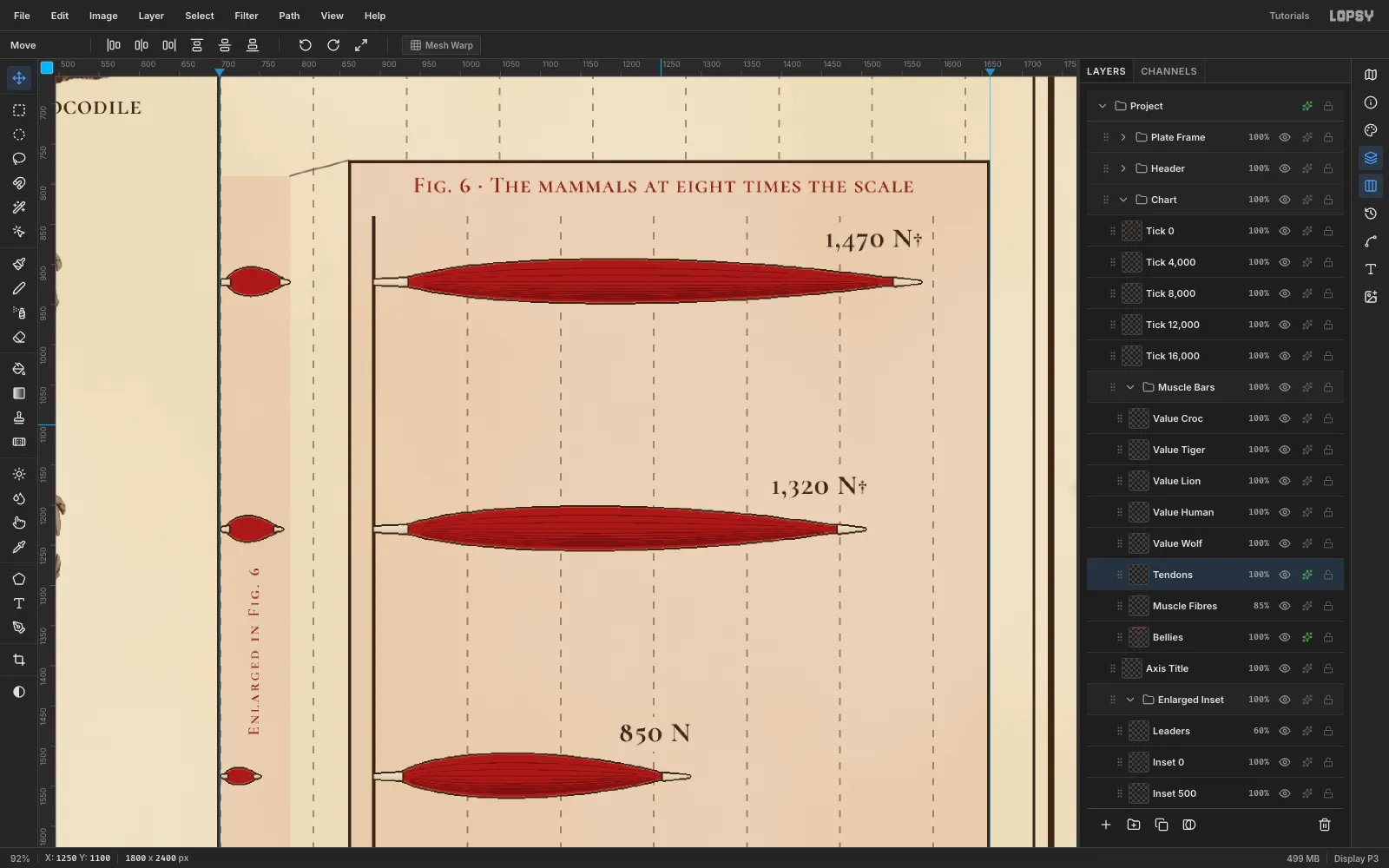

    Close-up of the inset: carmine spindle-shaped muscle bellies with dark fibre hatching, pale tapered tendons at both ends and thin sepia outlines
  13. Label the values

    Click a layer that isn't text before you set up each value. Right-align each value to its tendon tip, 10 px above the bar:

    • Crocodile: "16,400 N" in Cormorant SC Bold, 40 px, letter spacing 1.
    • Inset values: 34 px, with a dagger (†) on the three estimates.

    Then marquee around each label, 10 px out, and Delete the dashes on the gridline layer underneath, so no line runs through a number.

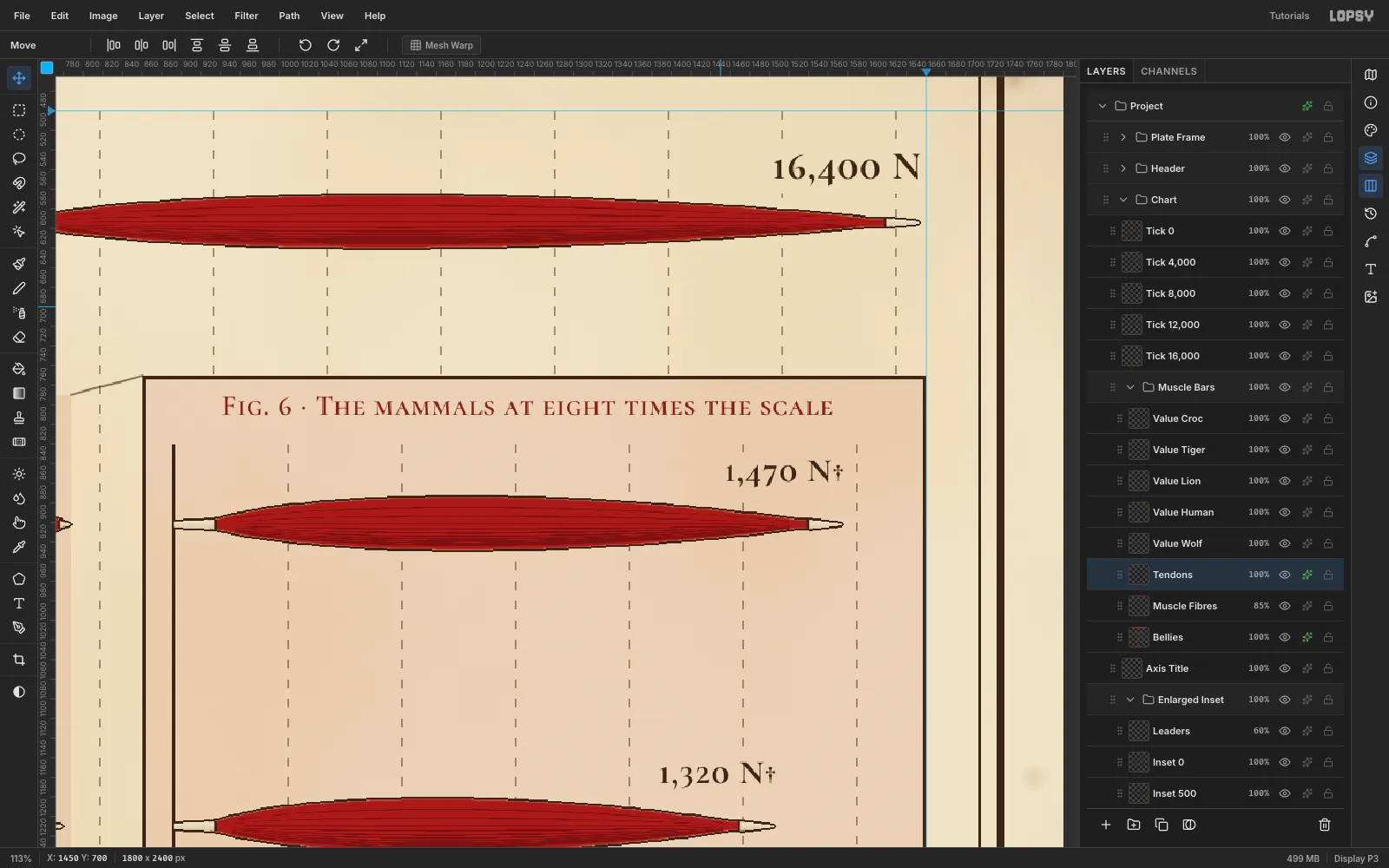

    Close-up of 16,400 N above the crocodile muscle's tip and 1,470 N† above the tiger's, each right-aligned to its tendon tip, with the dashed gridlines knocked out behind the numbers
  14. Add the key and sources

    Click a layer that isn't text. Then, under the axis title, set three lines of Cormorant Garamond at 24 px, letter spacing 0, left-aligned with the left edge of the title block at the top of the plate. The lines explain three things:

    • How to read a muscle bar.
    • What the dagger means.
    • Where every number and engraving comes from.

    Leave equal space above and below the block. Check the whole plate at 100% (View → Actual Size), then File → Quick Export PNG and File → Save Project.

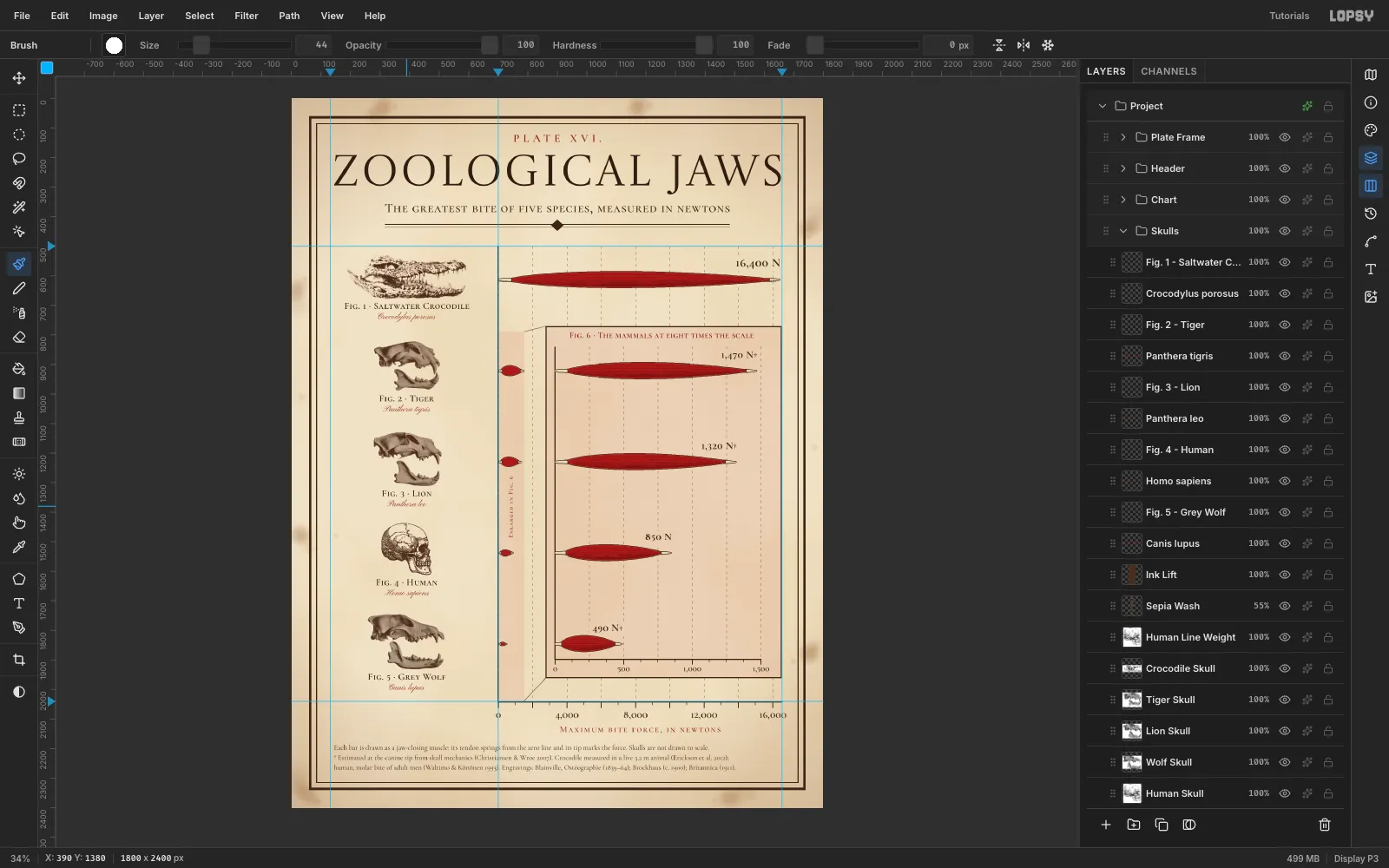

    The finished plate in Lopsy with three lines of footnotes under the axis title explaining the muscle key, the dagger for estimates and the engraving sources
