Design a Technical Illustration Christmas Card
Draw an exploded isometric gingerbread house in Lopsy, as a vintage assembly drawing with balloons, an X-ray detail view, a parts list and a title block.

Assembly manuals and patent drawings have a look everyone recognises:
- an exploded isometric view, with parts floating along dashed lines
- numbered balloons that point at each part
- a circled detail view
- a parts list, and a title block in the corner of the sheet

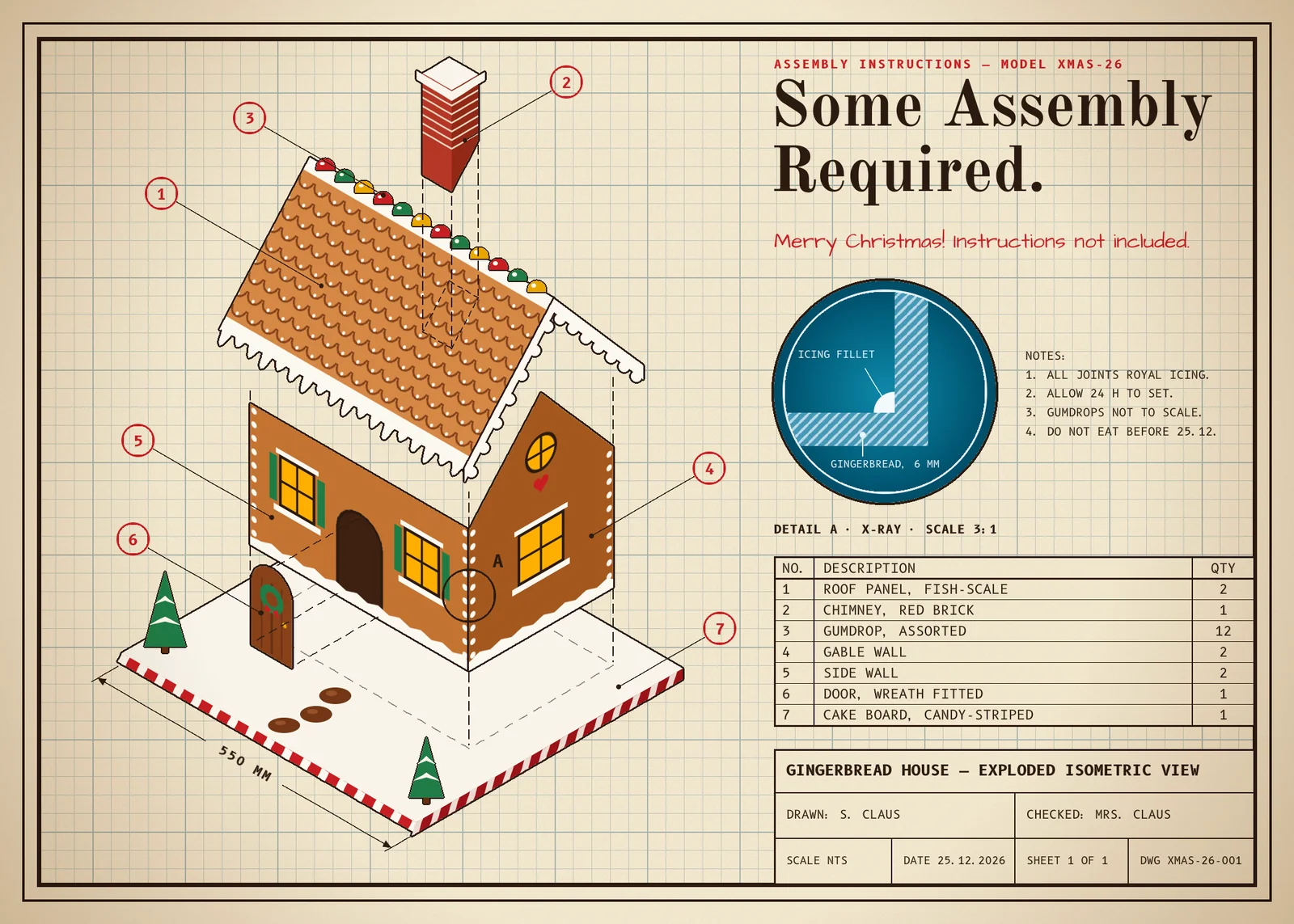

In this tutorial you'll use that look to make a Christmas card. It's a flat-pack gingerbread house with the headline Some Assembly Required.
The trick that makes it fast is the one technical illustrators use. Draw each wall and roof panel flat, as a front-on elevation, then distort it onto its isometric face. You never have to draw a window in perspective.
Along the way you'll use:
- Define Pattern and Fill with Pattern (grid paper, roof shingles and section hatching)
- the Move tool's Distort transform
- the Stroke effect for ink outlines
- nested groups, group moves and a multi-select move
- the Gradient tool
- Google fonts, including a rasterized and rotated label
The palette is small:
-
paper
-
ink
-
gingerbread
lit and shaded faces
-
icing
-
candy red
-
blueprint teal
-

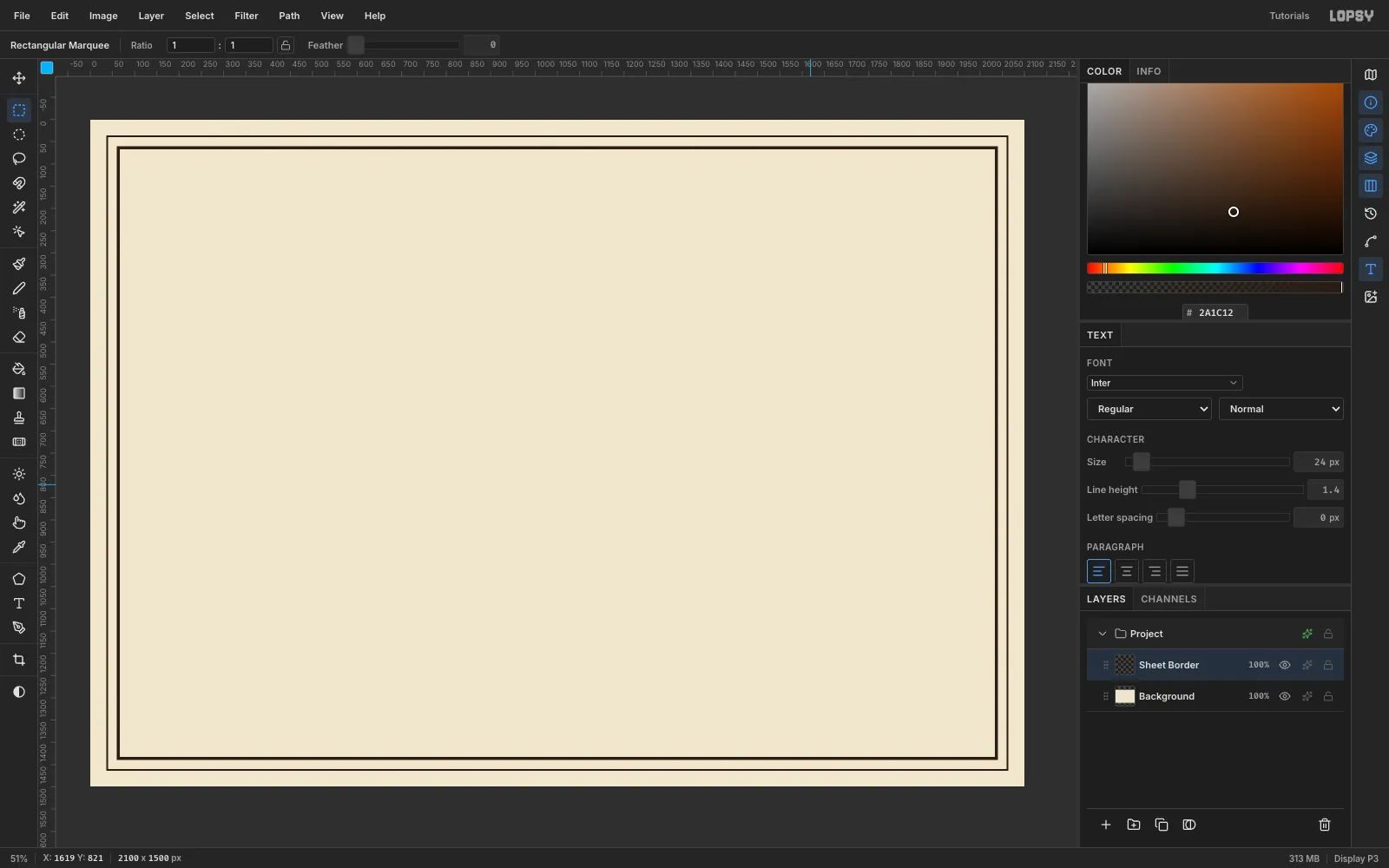

Set up the sheet and its double border
Create a 2100 × 1500 px document with a White background. That's a landscape 7 × 5 card at 300 ppi.
Select Background, set the foreground to and choose Edit → Fill. Then run Filter → Add Noise… at Amount 7, Mono, for a little paper tooth.
Rename Layer 1 to
Sheet Borderand set the foreground to ink . Each rule is a filled marquee with its middle deleted:- With the Rectangular Marquee, drag a rectangle over almost the whole sheet, leaving a margin of about 36 px on every side. Choose Edit → Fill, then Select → Shrink… by 3 and press Delete. That leaves a 3 px outer rule.
- Drag a second rectangle about 24 px inside the first (roughly 60 px in from the edges). Fill, Shrink… by 6 and Delete. That leaves a 6 px inner frame.

-

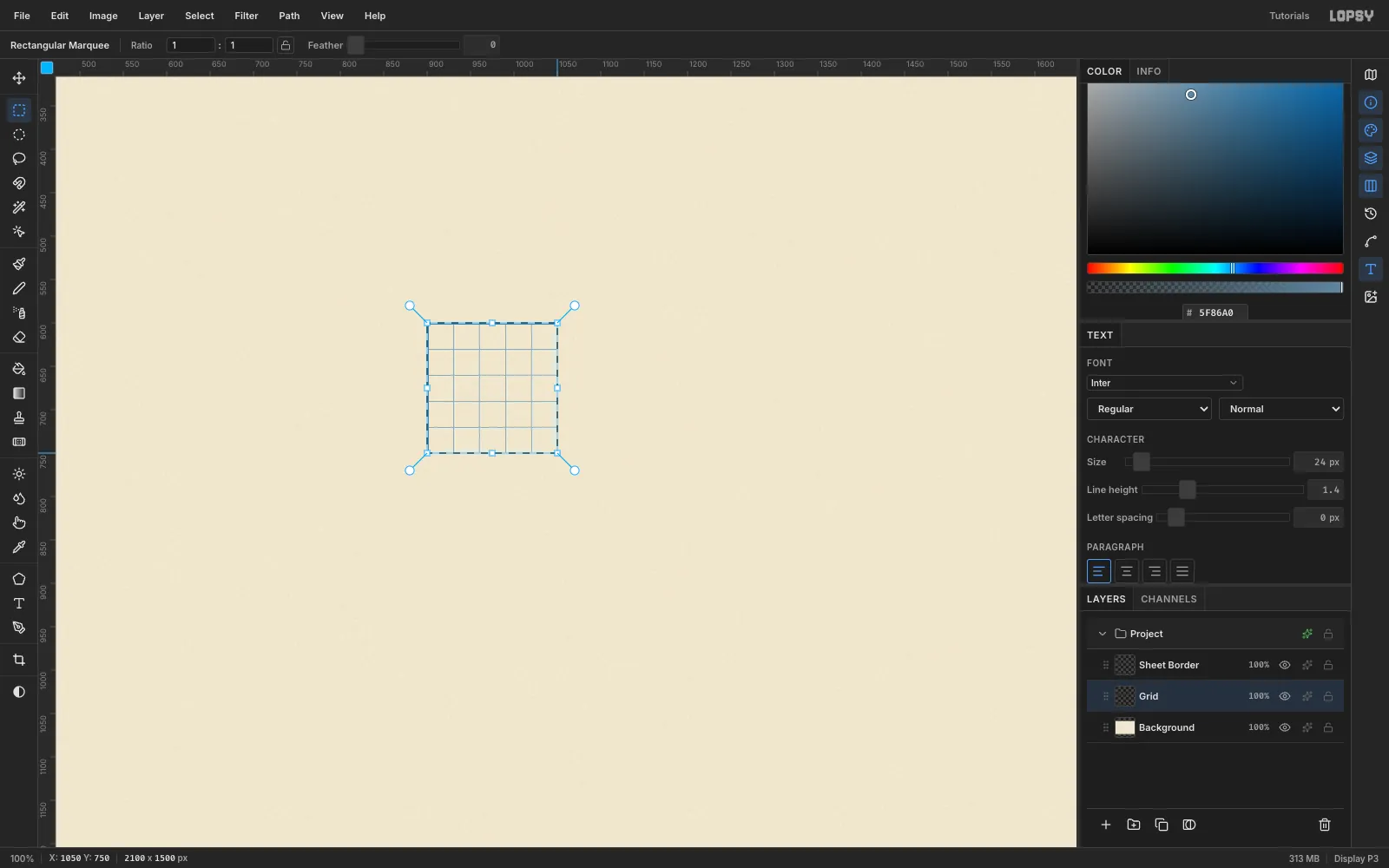

Draw one tile of engineering grid
Add a layer called
Gridabove Background and press Cmd+1 to zoom to 100%, so you can place 1 px lines. Pick the Pencil (N): it draws hard, pixel-exact lines. Click where a line starts, then hold Cmd+Shift and click where it ends for a dead-straight horizontal or vertical. On an empty spot:- Minor lines: at Size 1 in , draw lines every 30 px across a 150 × 150 square, both ways.
- Major lines: at Size 2 in , draw a line along the square's top edge and another along its left edge.
Marquee exactly the 150 × 150 square and choose Edit → Define Pattern. Then press Delete to clear the tile.

-
Tile the grid across the sheet

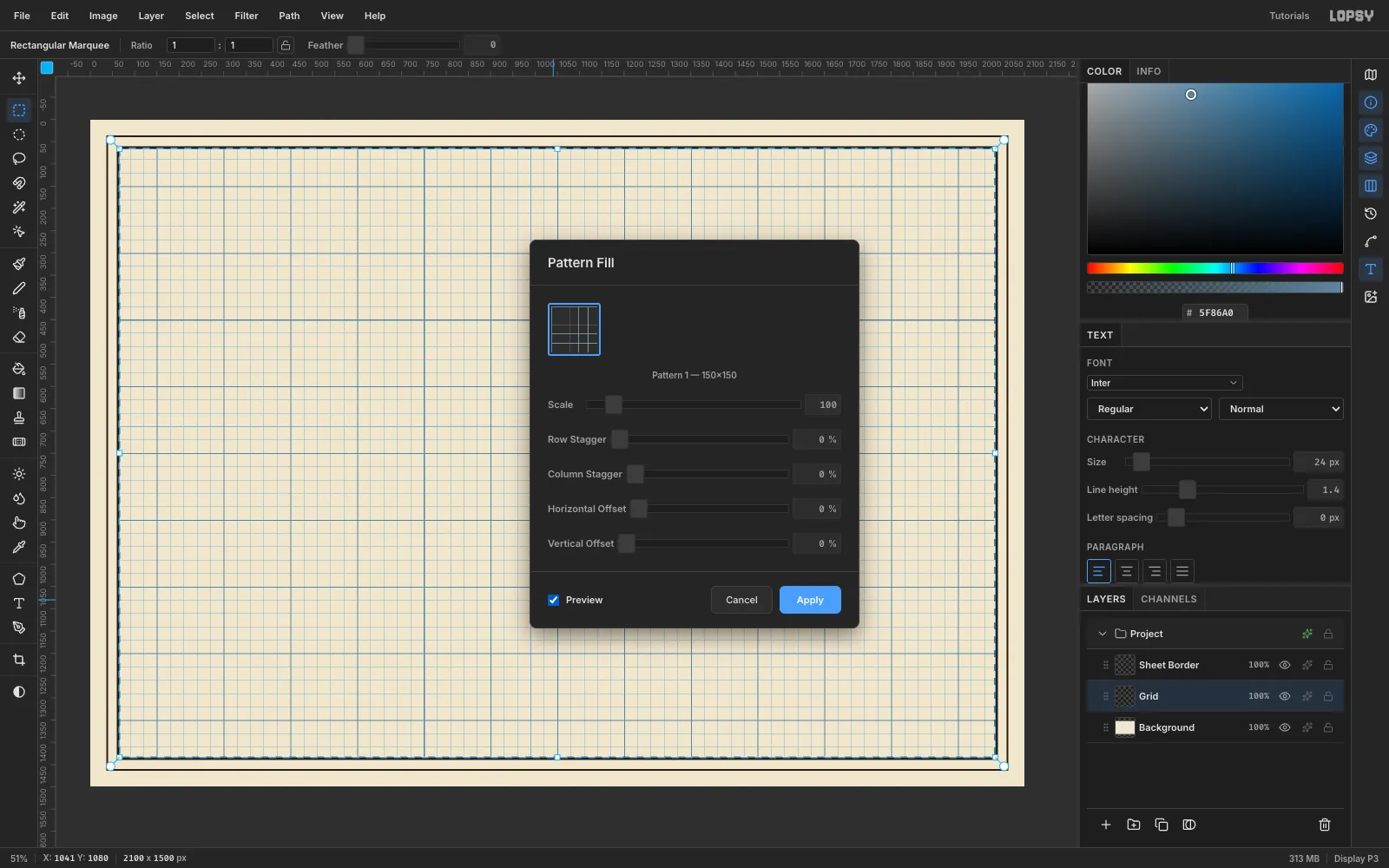

Press Cmd+0 to fit the view. Marquee the area just inside the thick frame and choose Edit → Fill with Pattern…. Pick the grid thumbnail and tick Preview to check it, then click Apply.
To finish the grid:
- Press Cmd+D.
- Open the layer's effects drawer (✦) and set Blend to Multiply.
- Drop the layer's opacity to 45% so the grid reads as printed paper, not a cage.

-

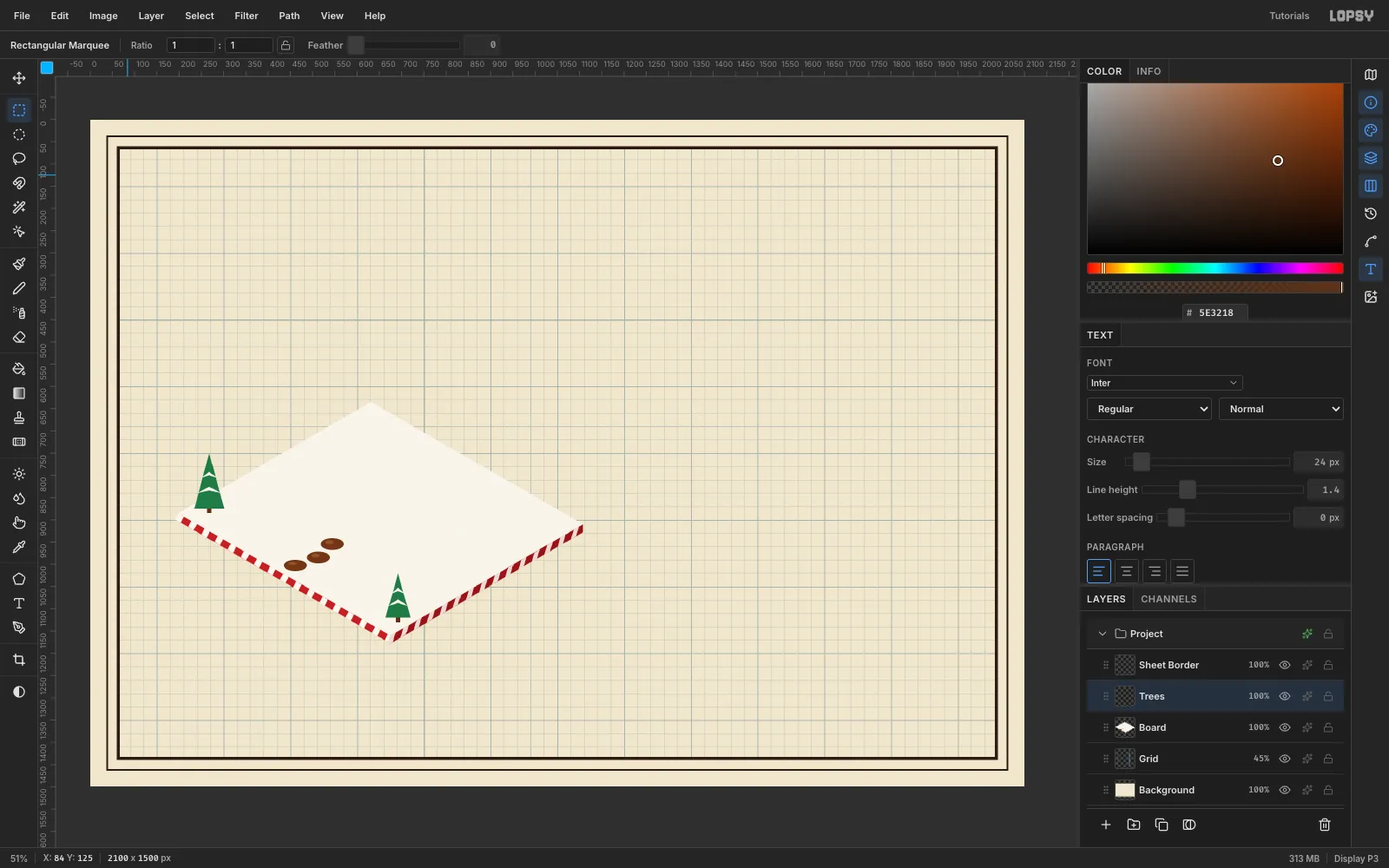

Draw the cake board and trees in isometric
Isometric drawing only uses three directions. Verticals stay vertical, and the other two axes slope 30° up to the left and up to the right. The board is a flat slab, so draw it straight in isometric with the Lasso (L) and Edit → Fill:
- The top face is a rhombus in white whose edges all slope at 30°. Its left point sits a little inside the left border, its right point just past the middle of the sheet, its top point about 40% of the way down and its bottom point about three-quarters of the way down.
- Under the two front edges go thin parallelograms in red and a darker , each 18 px deep.
- Short slanted white quads along those edges make the candy stripes.
The grid paper makes the angle easy to judge. Each major square is 150 px, and a 30° line drops about one major square for every 1¾ squares across.
The trees are three-point triangles in green with white chevrons for snow. The stepping stones are ellipse-marquee fills in chocolate .

-

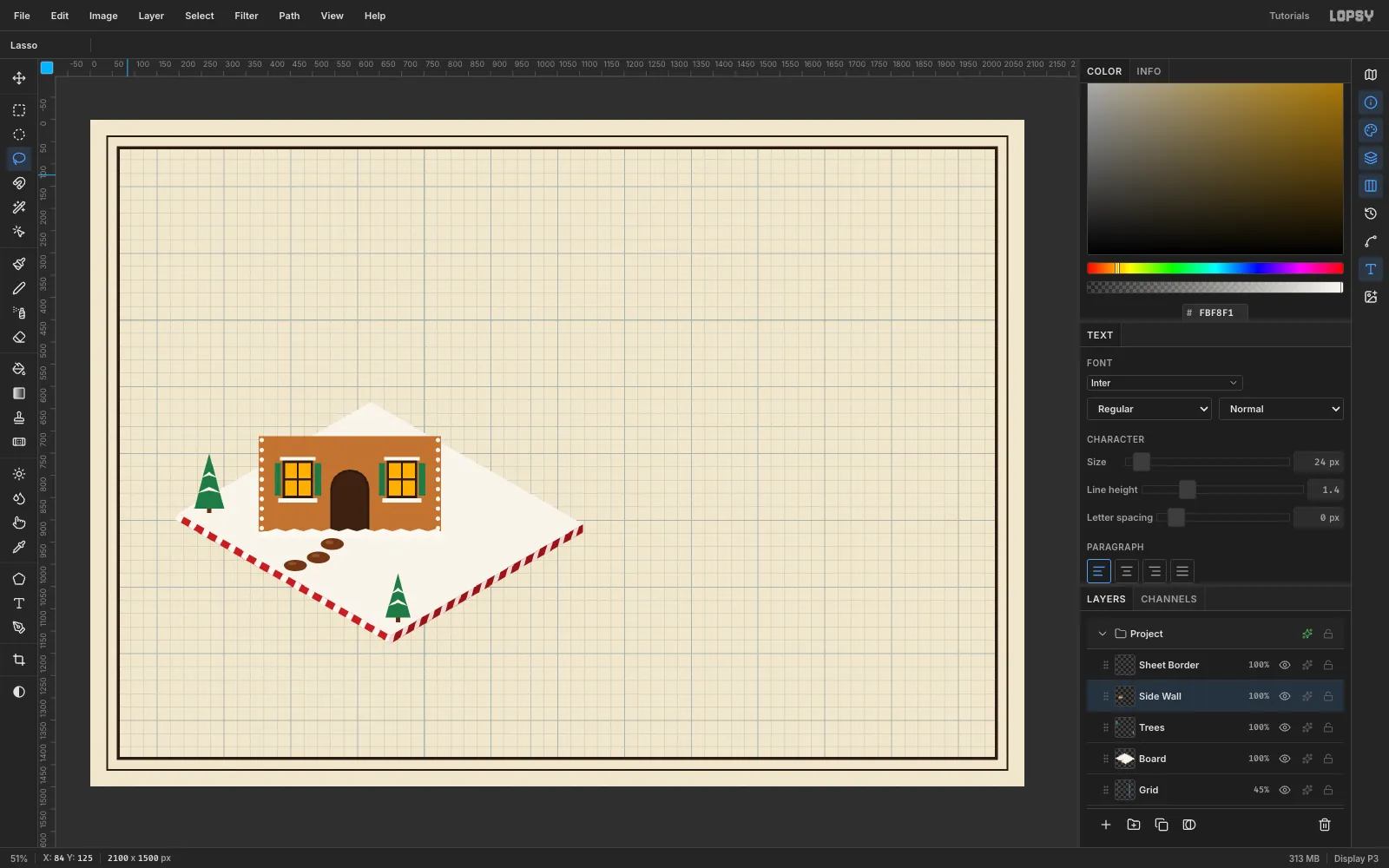

Draw the side wall flat, as an elevation
Add a layer called
Side Wall. Don't draw it in perspective. Draw it straight on, the way it would look on the kitchen counter before assembly:- a 410 × 225 tan rectangle
- two windows: an ink frame, a glass fill and 4 px ink muntins
- green shutters and white icing sills
- a dark arched doorway: an ink arch, then a arch inset 5 px
- a row of white piping dots down each edge
- a wavy white snow skirt along the bottom
The blocks are marquee, ellipse and lasso fills. Draw the muntins with the Pencil at Size 4 (click, then Cmd+Shift-click), and click the piping dots one by one with a small, hard white Brush. Draw it roughly where the wall will stand, over the back-left half of the board, so the distort in the next step only has to bend it.

-

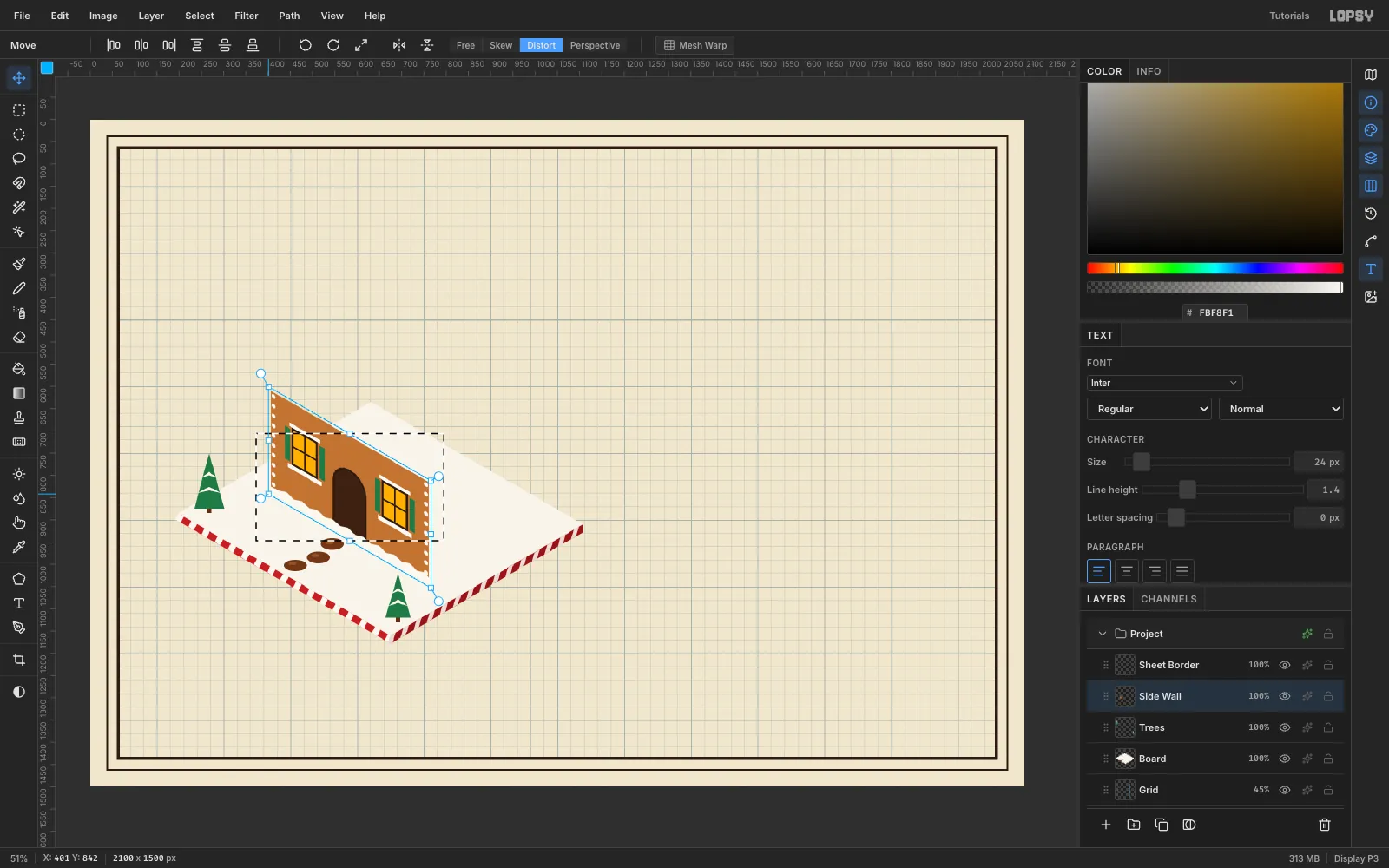

Distort the elevation onto its isometric face
Marquee the whole elevation, switch to the Move tool (V) and click Distort in the options bar. In Distort mode each corner handle moves on its own:
- Drag the two left corners straight up about 105 px, and pull them in about 30 px.
- Drag the two right corners straight down by the same amount, and pull them in about 30 px too. The narrower face is the foreshortening.
- Keep both sides vertical. The top and bottom edges should now slope down to the right at 30°, parallel to the board's front-left edge.
The windows, shutters and doorway all come along in correct isometric. Press Cmd+D to commit.

-

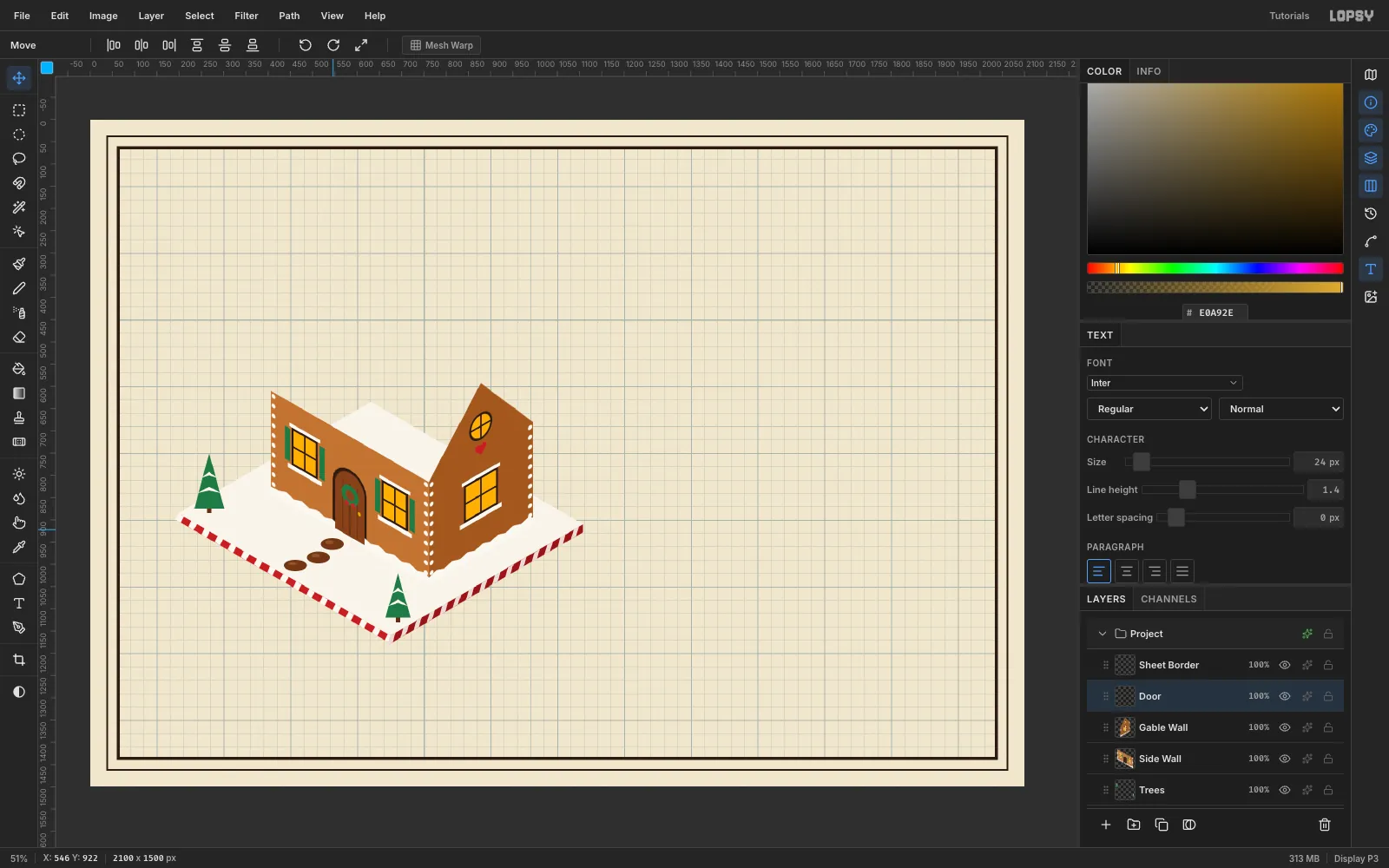

Build the gable wall and door the same way
The gable wall is a pentagon in the darker , 270 wide and 380 tall at the peak. It has a round attic window, a piped red heart and one big window. Draw it flat to the right of the side wall, then Distort it onto the right-hand face. This face turns the other way:
- drag the two left corners down about 70 px, and the two right corners up by the same amount, so the top and bottom rise to the right at 30°
- line its bottom-left corner up with the side wall's bottom-right corner, so the two walls meet at the front corner of the house
The door is its own layer. Draw it as a brown arch with plank lines, a green ring wreath with a red bow, and a gold knob. Distort it into the doorway so it can be pulled out later.

-

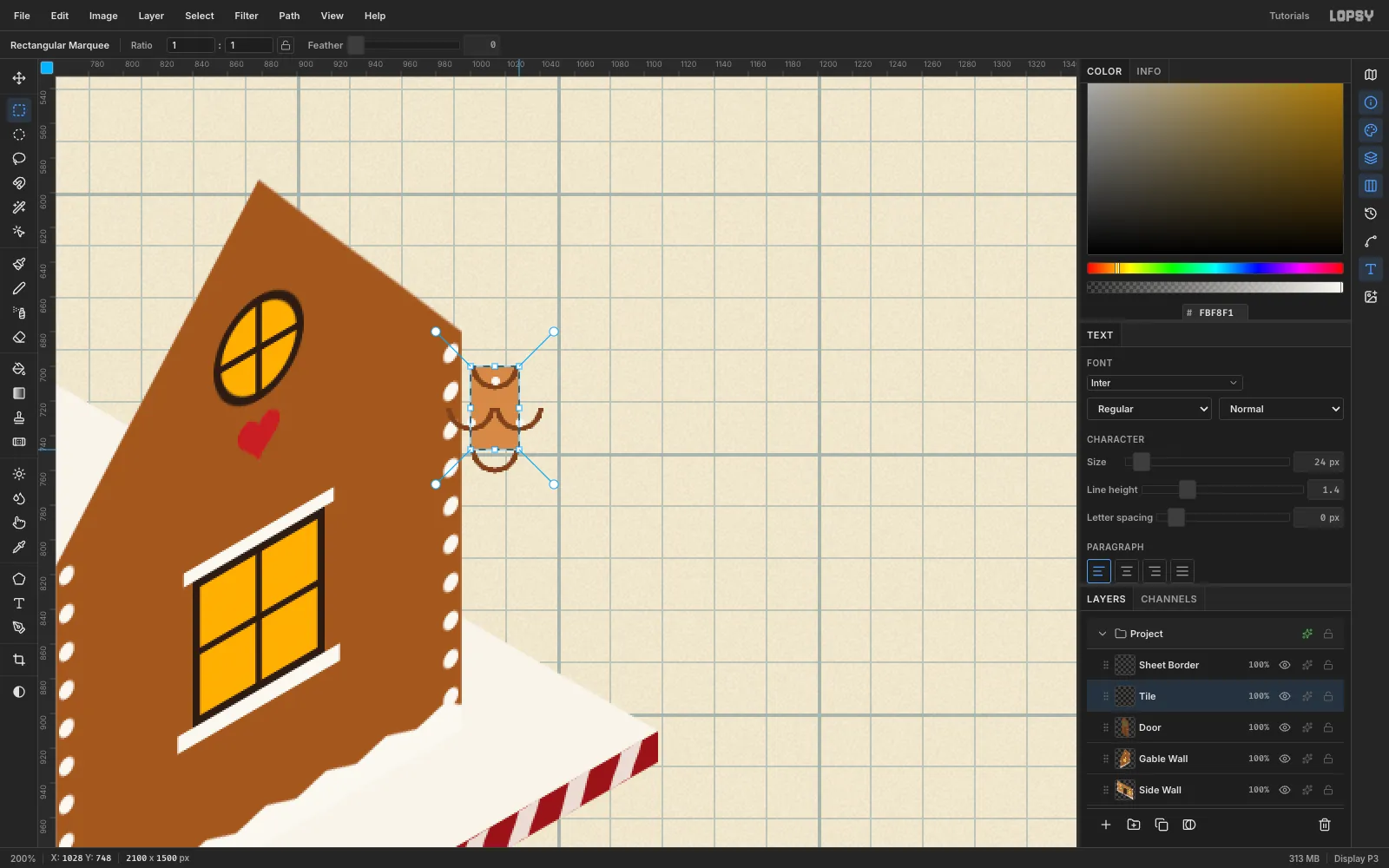

Make a fish-scale shingle tile
On a temporary layer, zoom in and fill a 28 × 48 rectangle with . Then:
- Lasso half-rings (lower half of a 14 px circle, 3 px thick) in . Put them at the top-centre and at mid-height on both side edges. The side-edge ones are cut in half, so the scallops stagger when the tile repeats.
- Click a 2.5 px white icing dot inside each scale with a hard Brush.
Marquee exactly the 28 × 48 tile and choose Edit → Define Pattern. Delete the temporary layer.

-

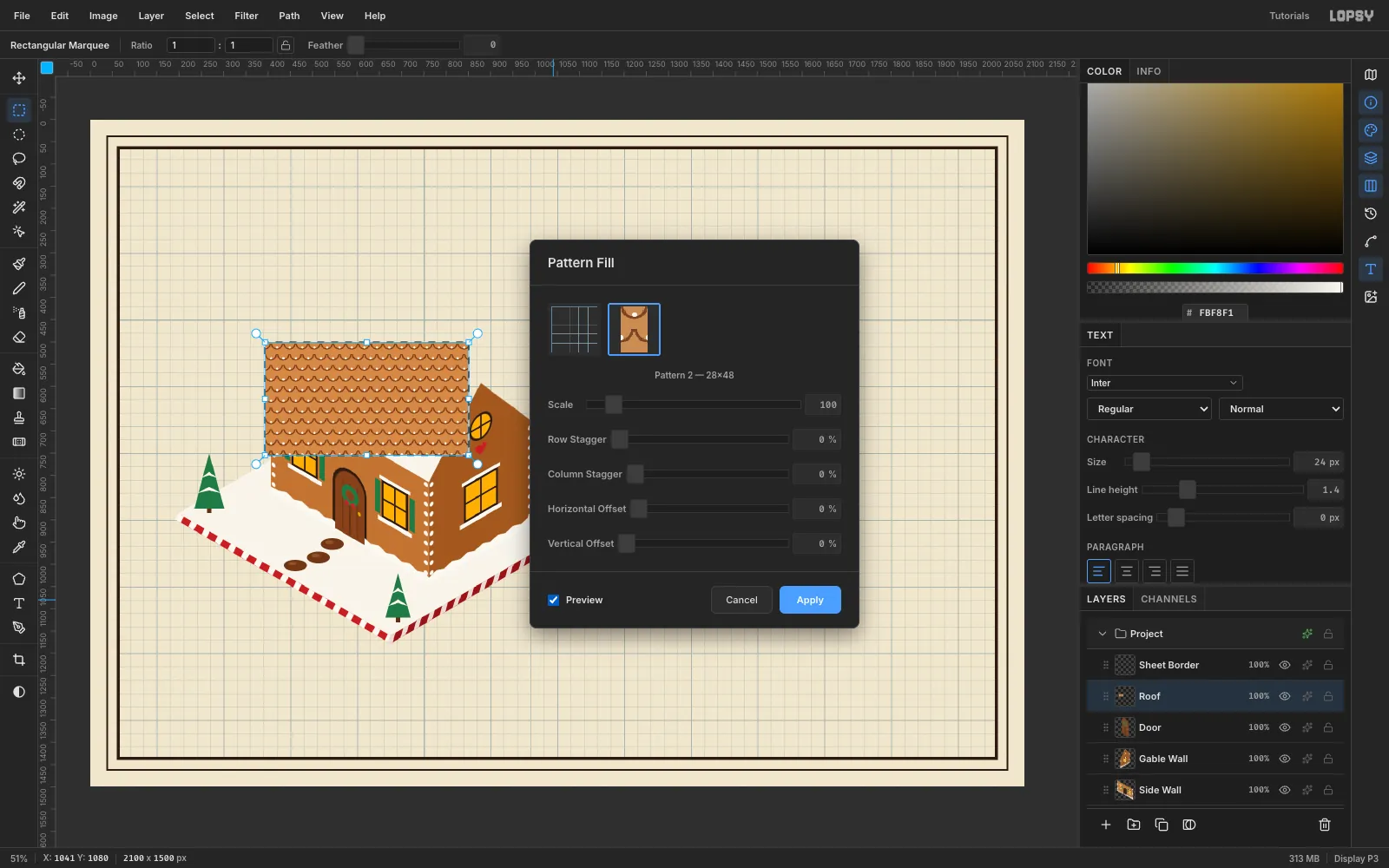

Pattern-fill the roof panel
Add a layer called
Roofabove the door. Marquee a flat roof panel about 460 × 255 px in the empty space above the side wall, then choose Edit → Fill with Pattern… and pick the 28×48 thumbnail. Tick Preview, then Apply.Add the icing on top of the shingles:
- an 18 px white band along the ridge (top edge)
- scalloped white drips hanging below the eave (bottom edge), made from one lasso zig-zag

-

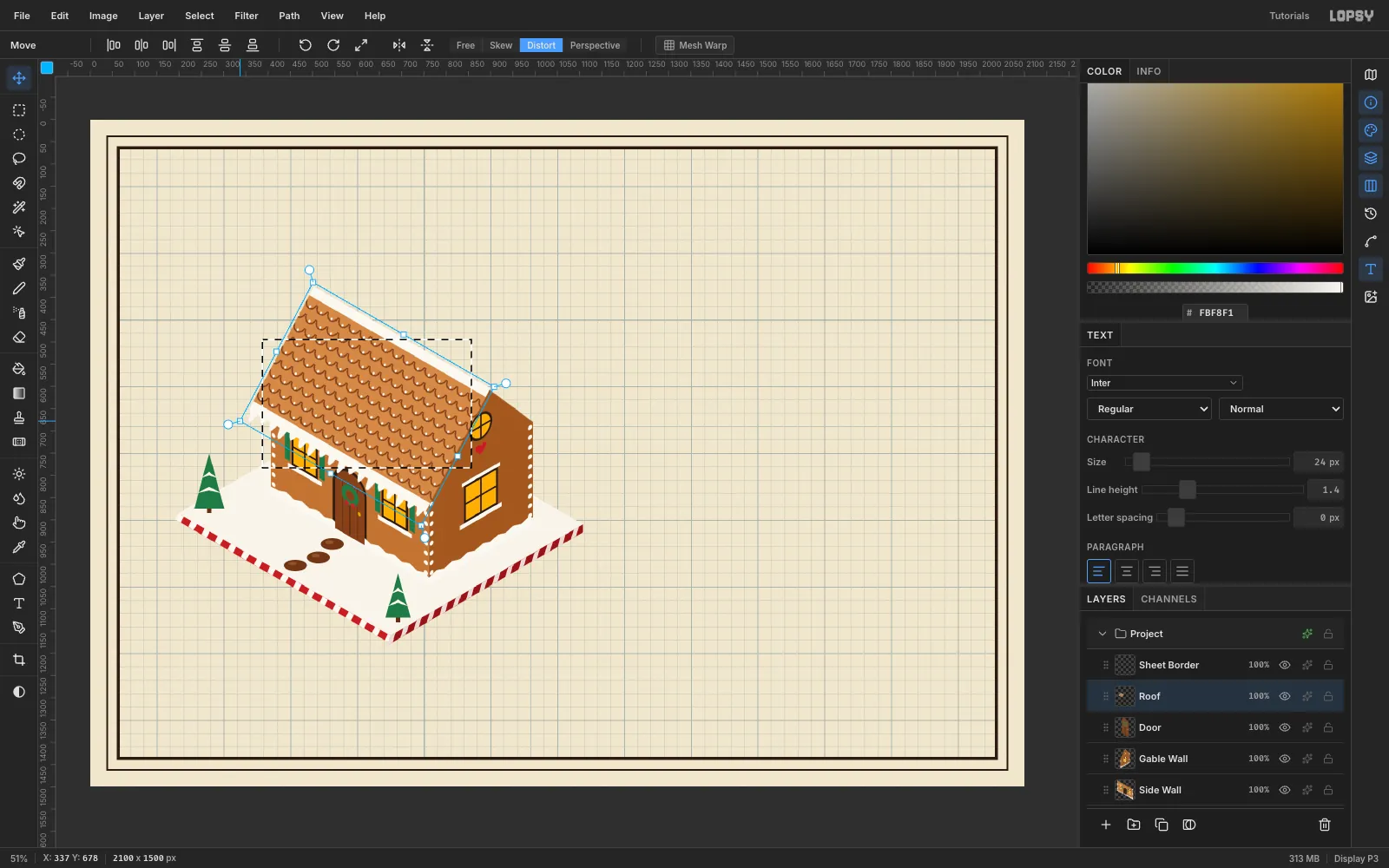

Distort the roof onto its slope
Marquee the roof and use Distort again. The roof slopes back to the ridge, so its face is a steeper parallelogram:
- Drag the two top corners up and to the right, until the ridge (the top edge) runs parallel to the wall tops and its right end sits on the gable's peak.
- Drag the two bottom corners down and to the left, until the eave overhangs the side wall a little.
- The left and right edges should follow the slope of the gable's roof line.
The shingles shrink toward the ridge automatically, which is exactly what they should do.

-
Add the rake icing, gumdrops and chimney
These pieces are small, so draw them straight in isometric with the lasso:
- Roof Rake: a white chevron strip that follows the gable's roof line, with 9 px white scallops underneath.
- Gumdrops: twelve half-domes in red, green and gold, evenly spaced along the ridge, each with a white highlight.
- Chimney: two brick faces ( lit, shaded) with pale mortar lines, and a white snow cap on top. Its bottom edge follows the roof slope, so it can sit on the roof.

-

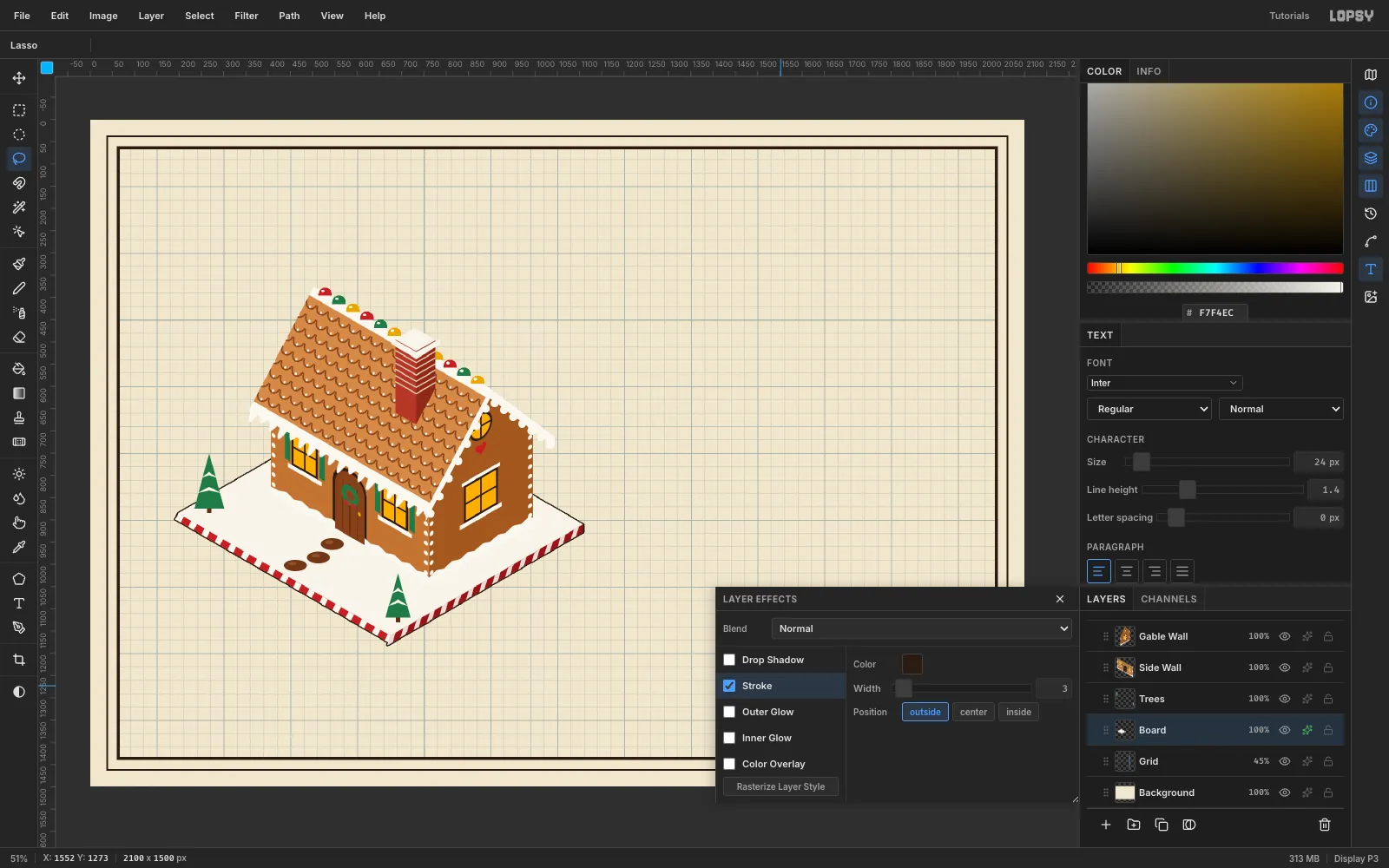

Outline every part with a Stroke effect
Technical illustrations have a crisp outer contour on every part. Select each part layer, open the effects drawer (✦), tick Stroke and set:
- Color
- Width
3(use2for the gumdrops and trees) - Position outside
Because each part is its own layer, the shared edges get a double-weight line. That's the classic "silhouette heavier than detail" hierarchy, for free.

-
Group the parts
Group the layers into sub-assemblies. For each group, click the first layer, Shift-click the last, and choose Layer → Group Layers:
- Base: Board + Trees
- Walls: Side Wall + Gable Wall
- Roof Assembly: Roof + Roof Rake + Gumdrops
Collapse those three groups. Then click Base, Shift-click Chimney and group everything into House.

-

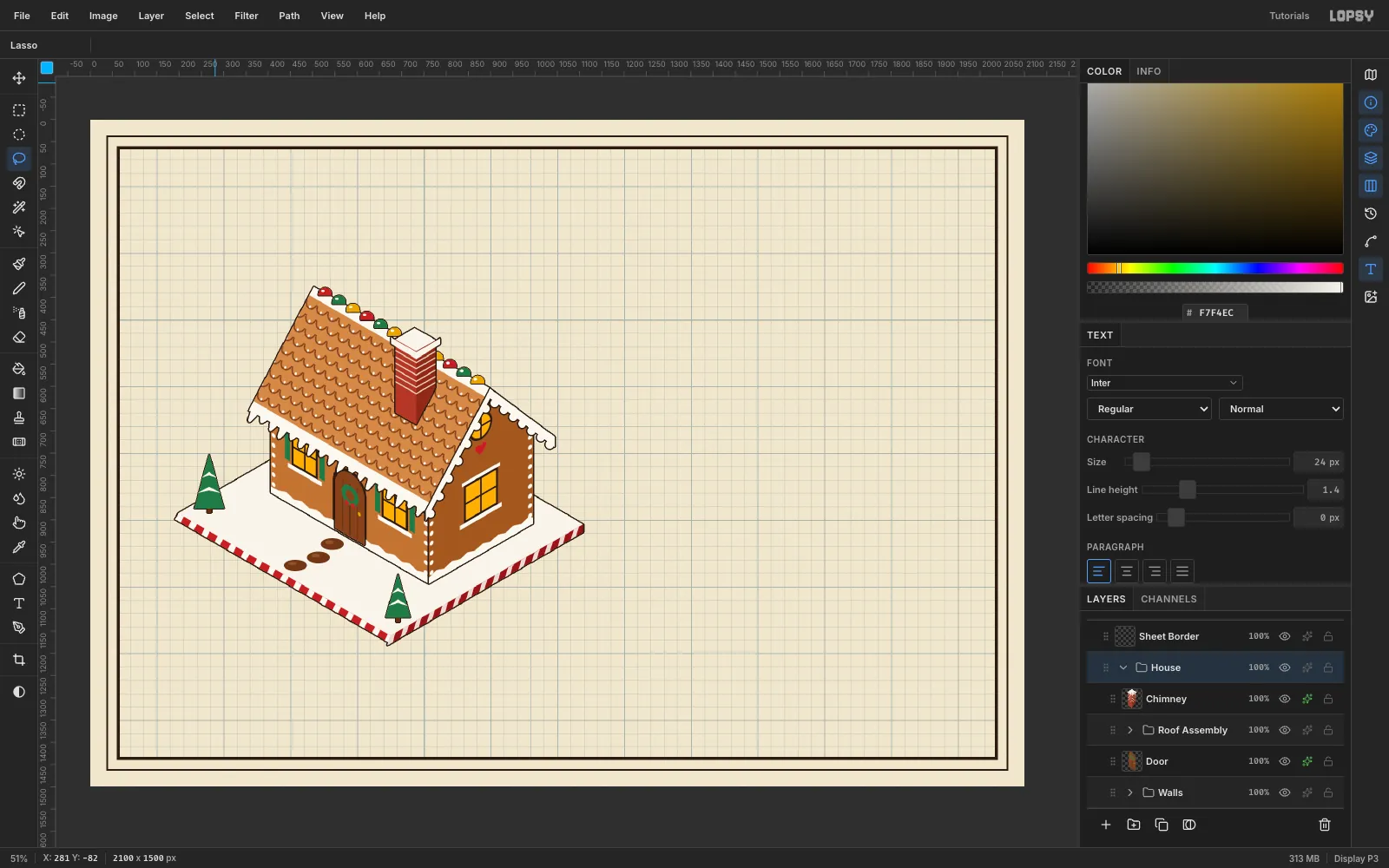

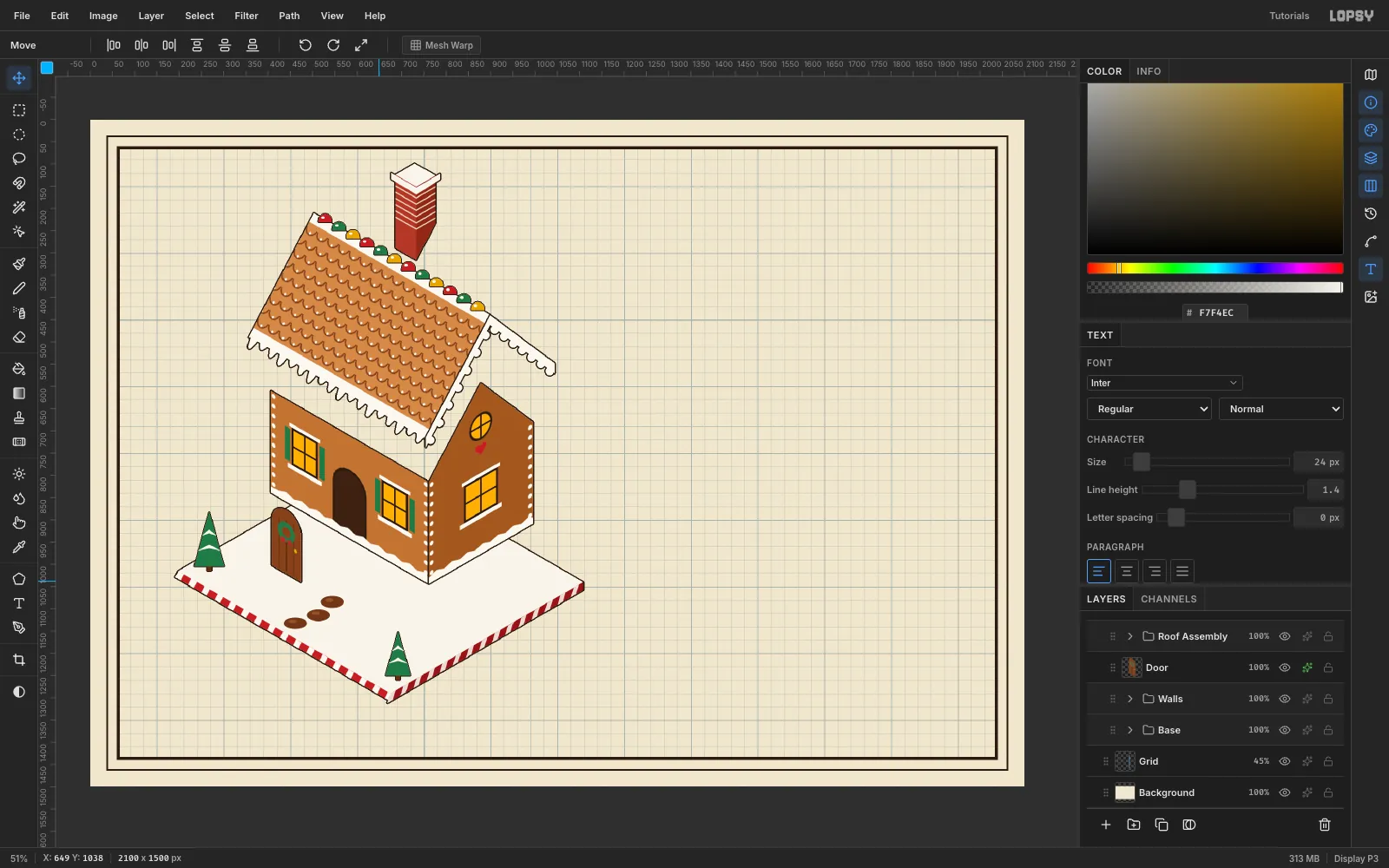

Explode the house with group moves
Now take the kit apart. Select a group or layer, switch to Move and drag. Arrow keys finish each move neatly: each press nudges 1 px, and Shift+arrow nudges 10 px.
- Roof Assembly: straight up about 165 px, so there's a clear gap above the walls
- Chimney: straight up about 370 px, well clear of the roof (you'll lift it once more later)
- Door: out of the doorway, down and to the left along the isometric axis (about 145 px left and 85 px down)
- Base: straight down about 130 px
Every move of a group carries its children with it. Cmd+Z and Cmd+Shift+Z step through the moves if you want to compare.

-
Draw dashed assembly lines
Add an
Assembly Lineslayer above House. Use a hard Brush at Size 2 in ink and draw each dash as a short drag, 14 px on and 9 px off:- straight up from each visible wall-top corner to the roof's underside
- straight down from each wall-bottom corner to the board
- three lines guiding the door home
On the Board layer, dash the walls' footprint onto the snow in grey . That shows where the walls land.

-
Start the X-ray detail view
A detail view blows up one joint in a circle. Here it's an "X-ray" of how the walls are glued.

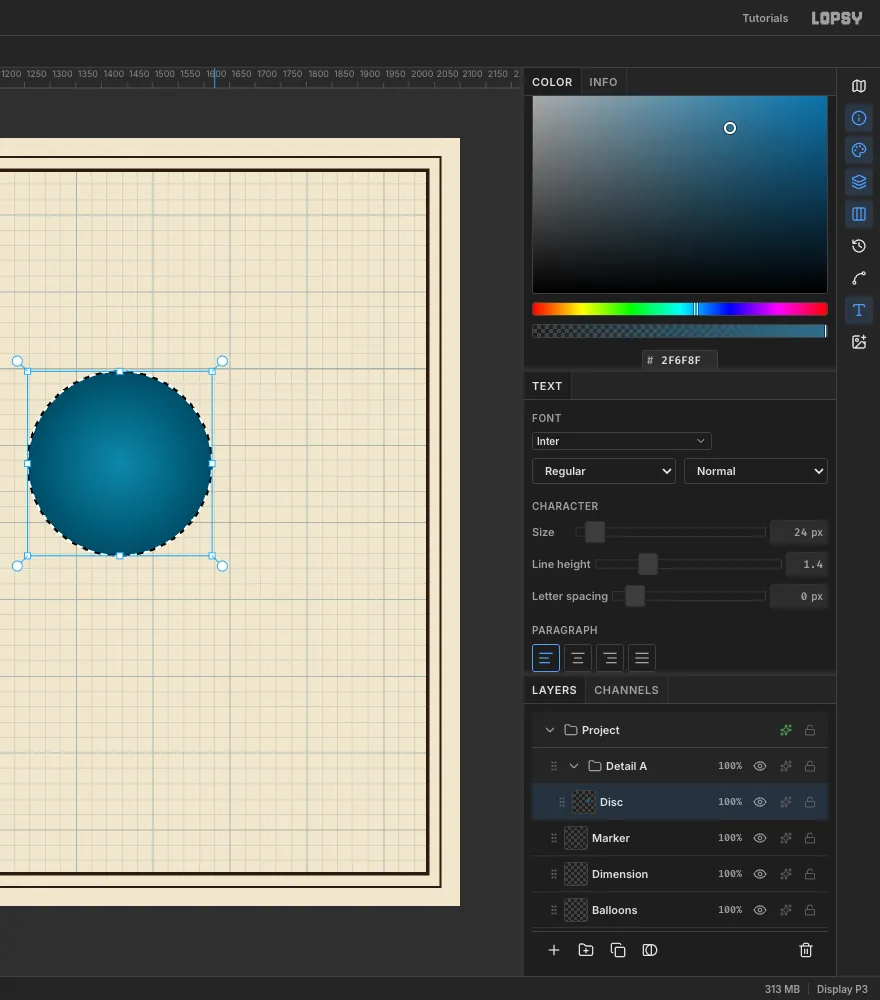

Make a new group called
Detail Aand add a layer calledDisc. In the right half of the sheet, about a third of the way down, Cmd-drag an elliptical marquee 360 px across (radius 180). The right column of text will line up with its left edge later. Then:- Pick the Gradient tool and set Type to Radial. In Advanced…, set the stops to → .
- Drag from the centre to the edge.
- Give the disc a Stroke of 4 px ink.

-

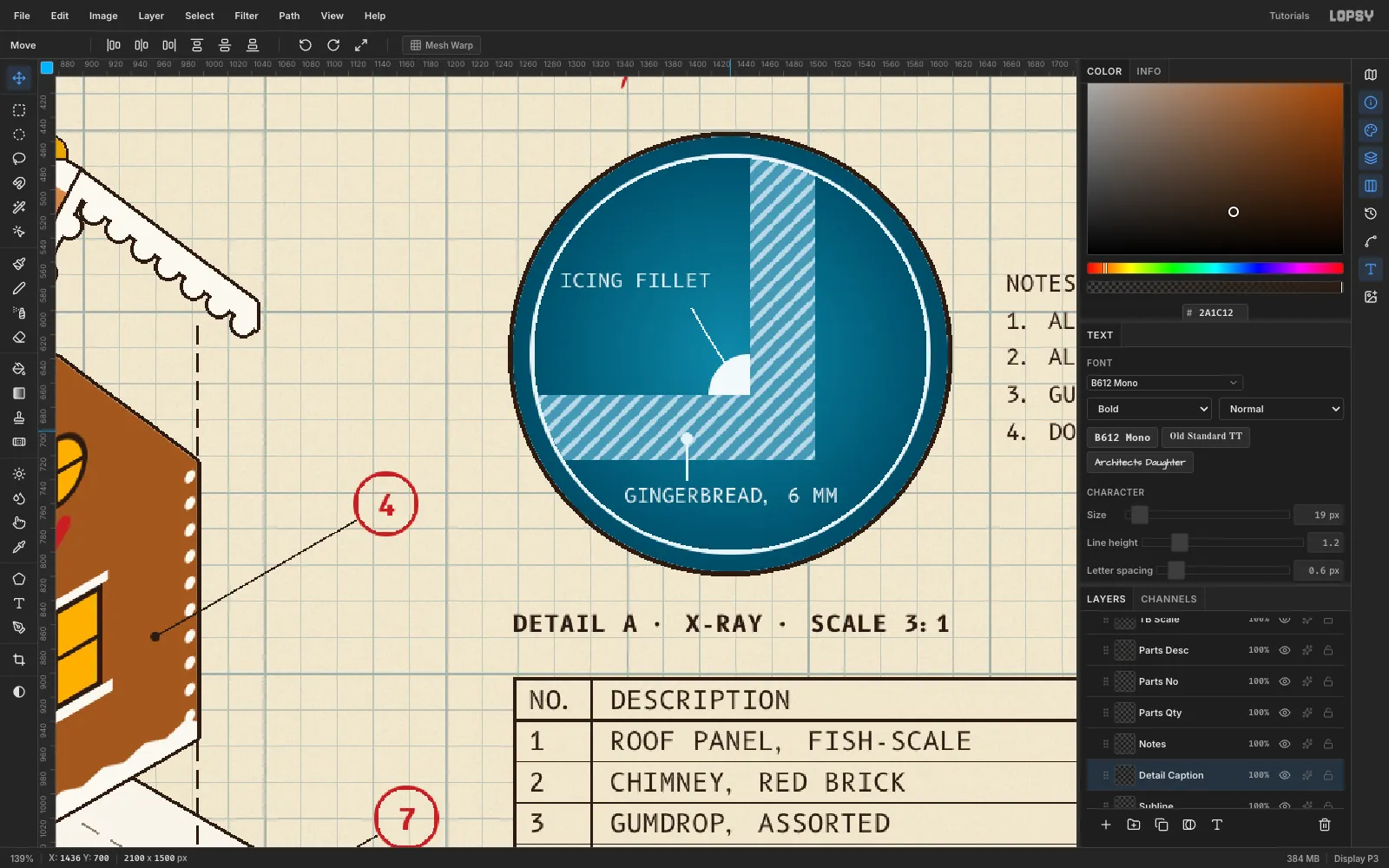

Hatch the section and pipe the icing
Section views mark cut material with 45° hatching:
- Section layer: fill an L of two wall slabs in . Clip it to the circle: Cmd-drag an ellipse marquee about 17 px inside the disc's edge (radius 163), then Select → Inverse and Delete.
- Hatch tile: make a 16 × 16 pattern tile holding three thin white diagonal bands: one through the middle from bottom-left to top-right, and one clipping each of the other two corners. The corner pieces meet up with the next tile, so the lines join seamlessly.
- Hatch layer: Cmd-click the Section thumbnail to select the slabs. On a new
Hatchlayer, use Fill with Pattern… with the 16 × 16 tile, then set the layer to 70%. - Icing layer: fill a white circle of radius 34 in the inside corner. Cmd-click the Section thumbnail again and press Delete. The walls cut it back to a quarter-round icing bead.
- Ring: add a thin white ring just inside the disc's edge (radius about 166).
Label the section in B612 Mono 16 px white, each label with a short leader.

-

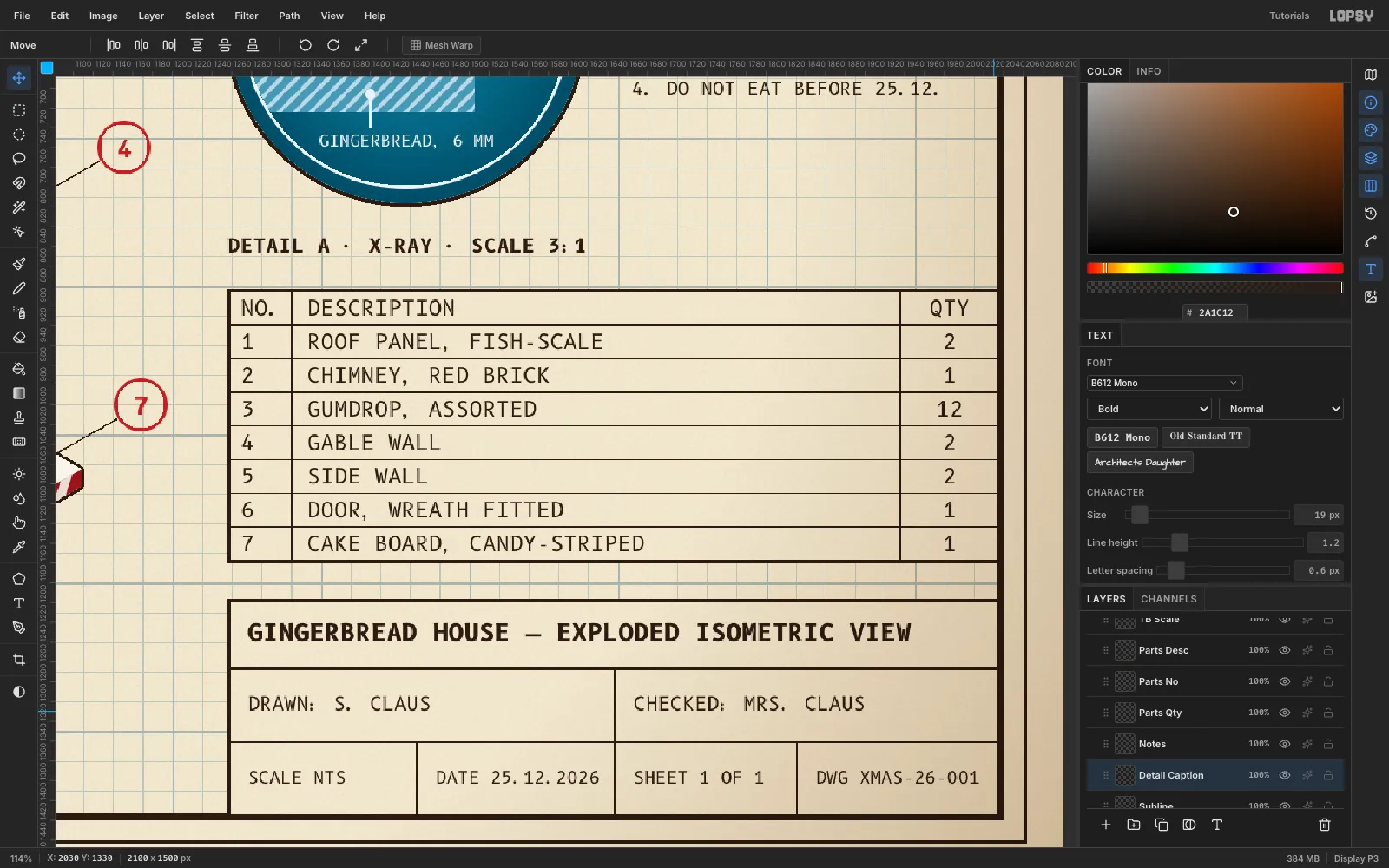

Rule up the parts list and title block
Every engineering sheet ends in a title block in its bottom-right corner:
- On a
Table Filllayer, fill paper-coloured rectangles behind the parts list and the title block. Keep them inside the frame, so the thick border still shows. - On a
Table Ruleslayer, draw the rules with the Pencil in ink, clicking each start and Cmd+Shift-clicking each end: Size 3 for the outer lines and header, Size 1 between rows.
Set the type in B612 Mono. Select Table Rules before you set up each new block:
- Parts list: 21 px with Line height 1.62, so each 34 px row holds one line. Make the QTY column an area text box (drag with the Text tool) set to Align center, so
12and2centre in their cells. - Title block: 24 px bold for the title, and 19 px and 17 px for the cells.
The jokes live here too: DRAWN S. CLAUS, CHECKED MRS. CLAUS, SCALE NTS.

- On a
-

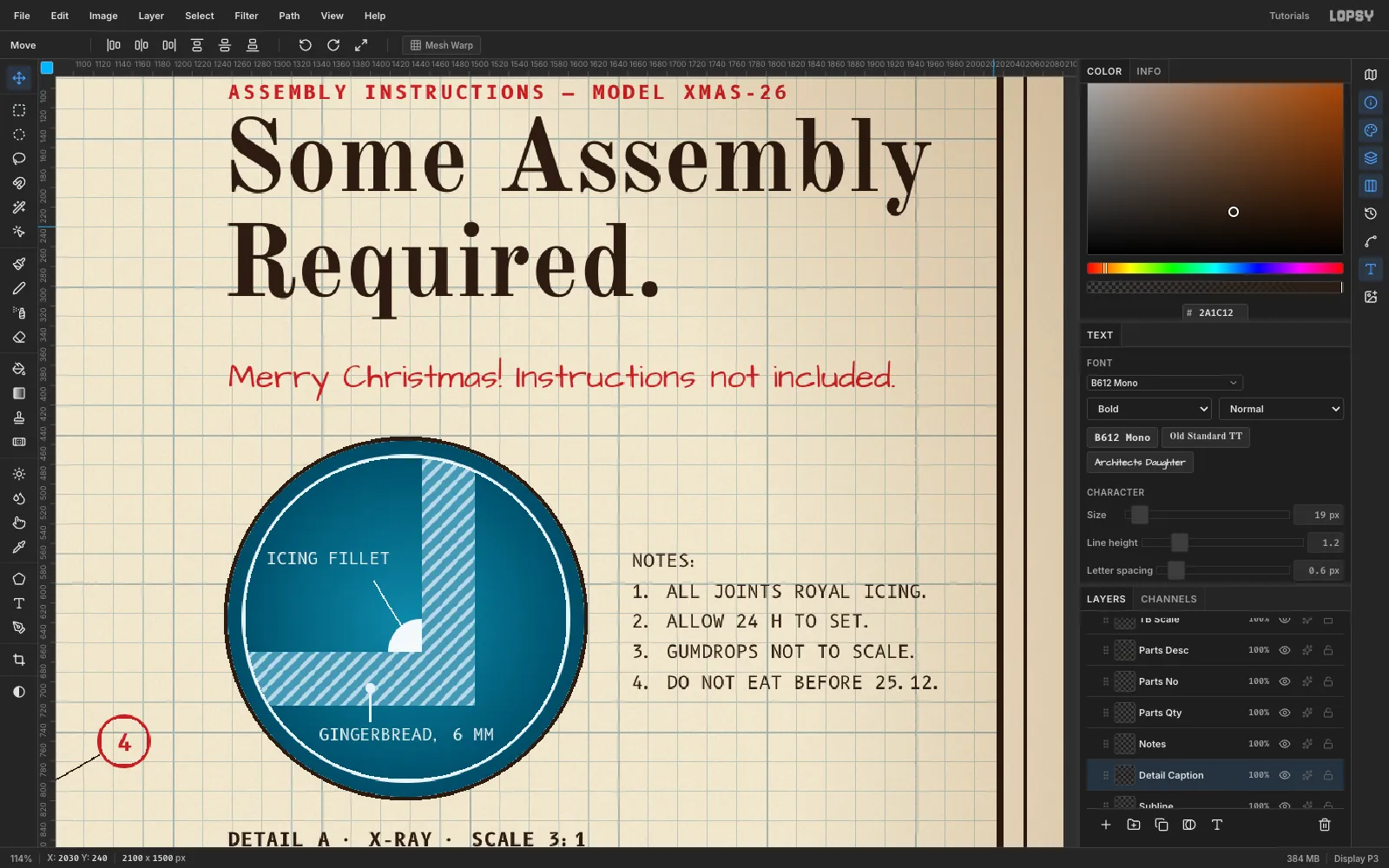

Set the headline and notes
Every block in the right column shares one left edge, the left edge of the detail circle. Click the top ruler there to drop a guide, then nudge each block to it with the arrow keys. Select Table Rules before you set up each new block.
- Kicker:
ASSEMBLY INSTRUCTIONS — MODEL XMAS-26in B612 Mono Bold 19, red, with Letter spacing 3. - Headline:
Some Assembly/Required.in Old Standard TT Bold 104 with Letter spacing 0 and Line height 1.02. - Greeting:
Merry Christmas! Instructions not included.in Architects Daughter 34, red. It's the drafter's handwriting. - Notes: B612 Mono 18 at Line height 1.7, beside the detail circle. For example, 4. DO NOT EAT BEFORE 25.12.
- Caption:
DETAIL A · X-RAY · SCALE 3:1under the circle. Add Letter spacing 0.6 so it spans the circle's full width.

- Kicker:
-

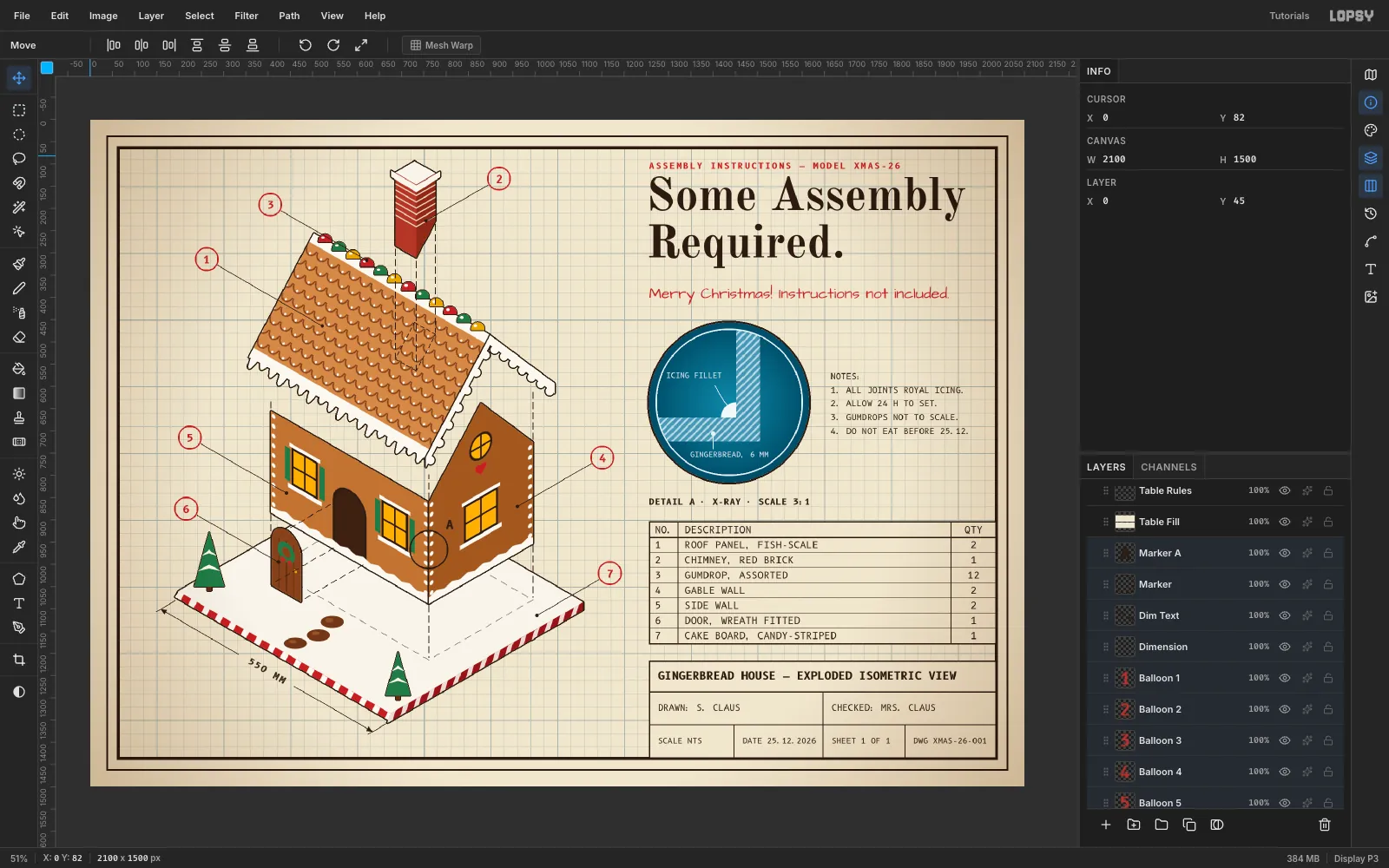

Rebalance the drawing with one multi-select move
Step back and check the balance. Here the lifted chimney crowded the ridge, and there was spare room at the bottom of the sheet.
- Click House, then Cmd-click every other layer of the drawing: Assembly Lines, plus any callout layers you've already added (the screenshot has the balloons, Dimension and the detail marker selected too).
- With the Move tool, drag down about 45 px. Every selected layer moves together, and one undo reverts them all.
- Expand House and lift Chimney another 50 px or so, so its base clears the gumdrops.
- Extend its three dashed drop lines to a dashed footprint on the roof.

-

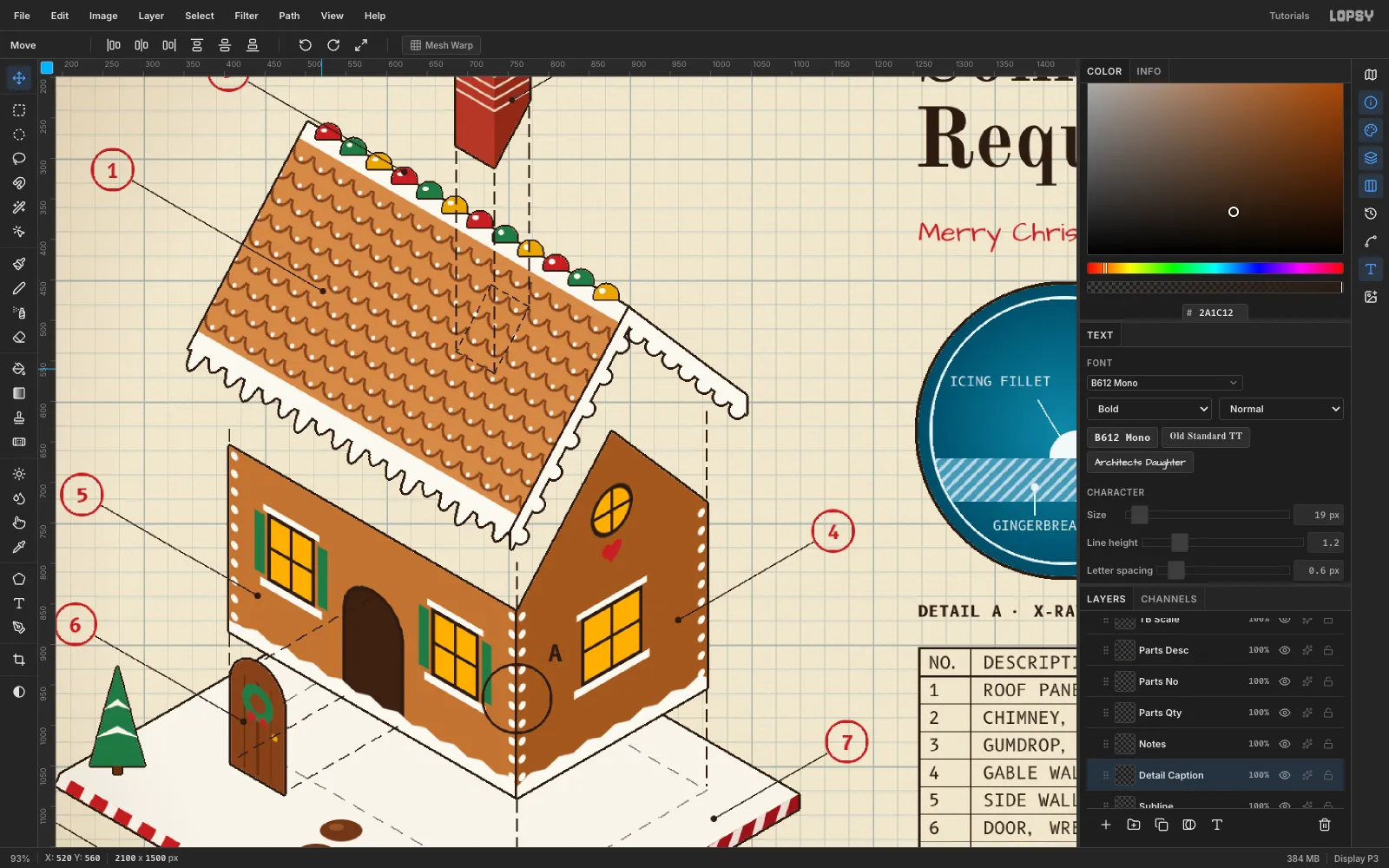

Call out the parts with balloons
Balloons are 27 px red rings, made with an ellipse fill, Shrink by 3 and Delete. The numbers are B612 Mono Bold 24, centred with arrow nudges.
Keep the leaders consistent. Every leader is a 1.8 px ink line at the isometric angle, 30°, and ends in a 4 px dot on the part (one click of the Brush at Size 4). With the Brush, click the start of a leader, then hold Shift+Cmd and click its end to snap the line to 15° steps. Parallel leaders make the sheet look engineered rather than scribbled. Number the balloons in the same order as the parts list.

-

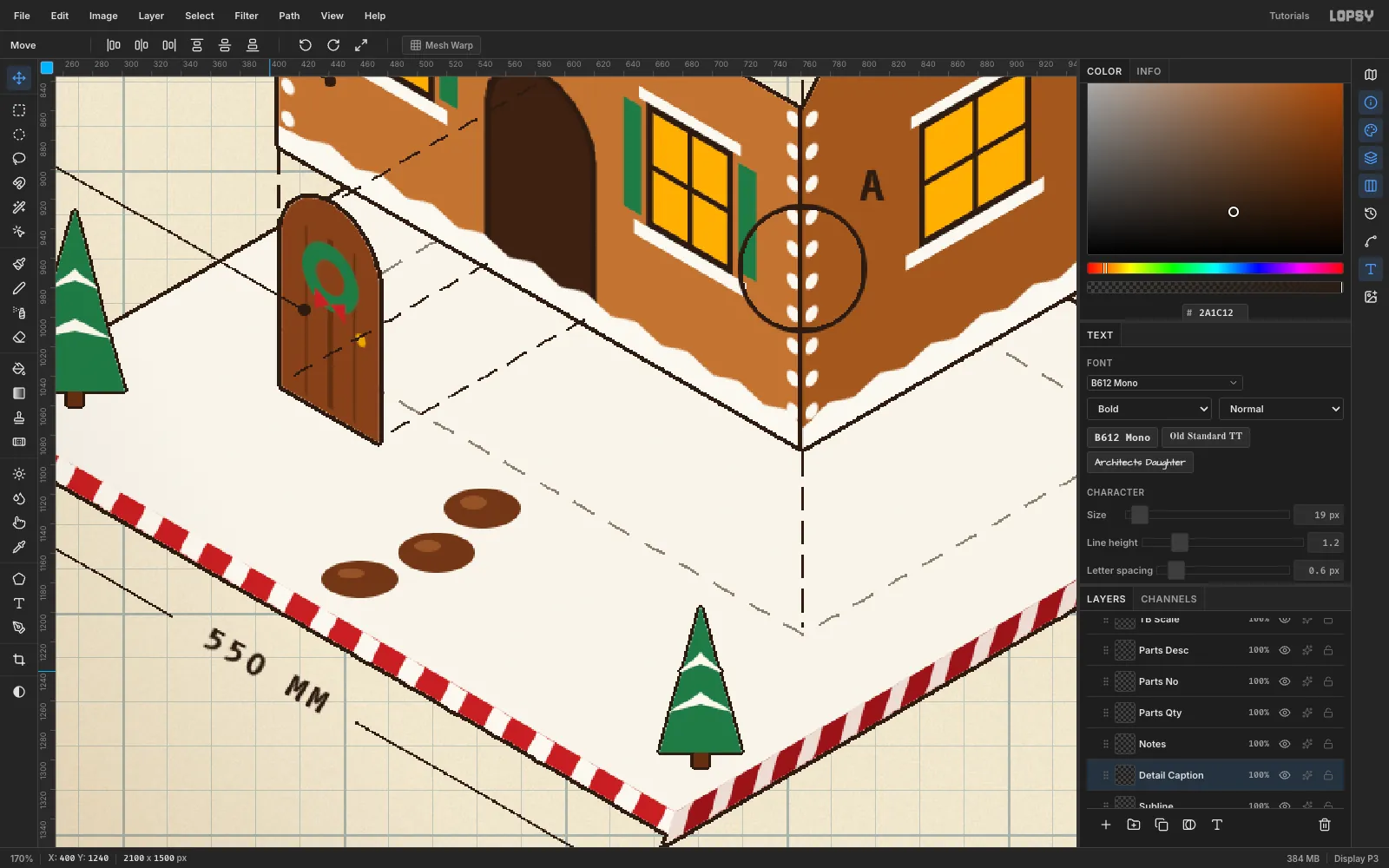

Add a dimension with a rotated label
Run a dimension line parallel to the board's front edge:
- Draw two extension lines that start just clear of the board corners.
- Draw the dimension line with a gap in the middle, and lasso a small ink triangle at each end for the arrowheads.
- Type
550 MMin B612 Mono Bold 20 in empty space, then click Rasterize Layer. - Marquee the label, switch to Move and drag a rotation handle while holding Cmd. That snaps the angle to 15° steps, so it lands on exactly 30°.
- Press Cmd+D and move the label into the gap.

-

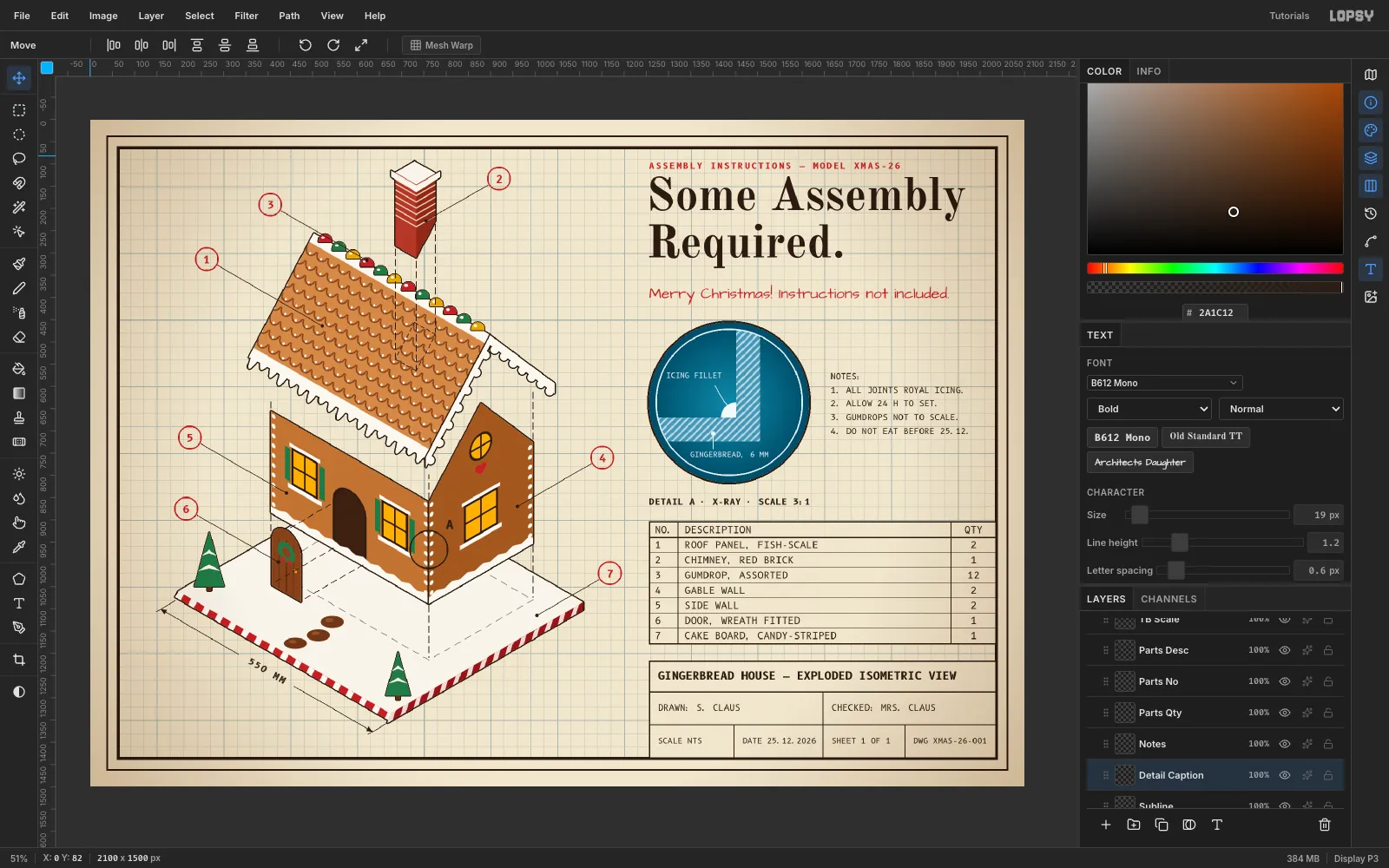

Age the paper and finish
Add a top layer called
Vignette. Marquee the whole canvas, then pick the Gradient tool set to Radial. In Advanced…, use three stops of :- 0% opacity at 0
- 0% opacity at 0.6
- 100% opacity at 1
Drag from the centre of the sheet to beyond a corner. Set the layer to Multiply at 35%. The edges warm up like an old blueprint.
Export with File → Quick Export PNG and save the project with File → Save Project.
